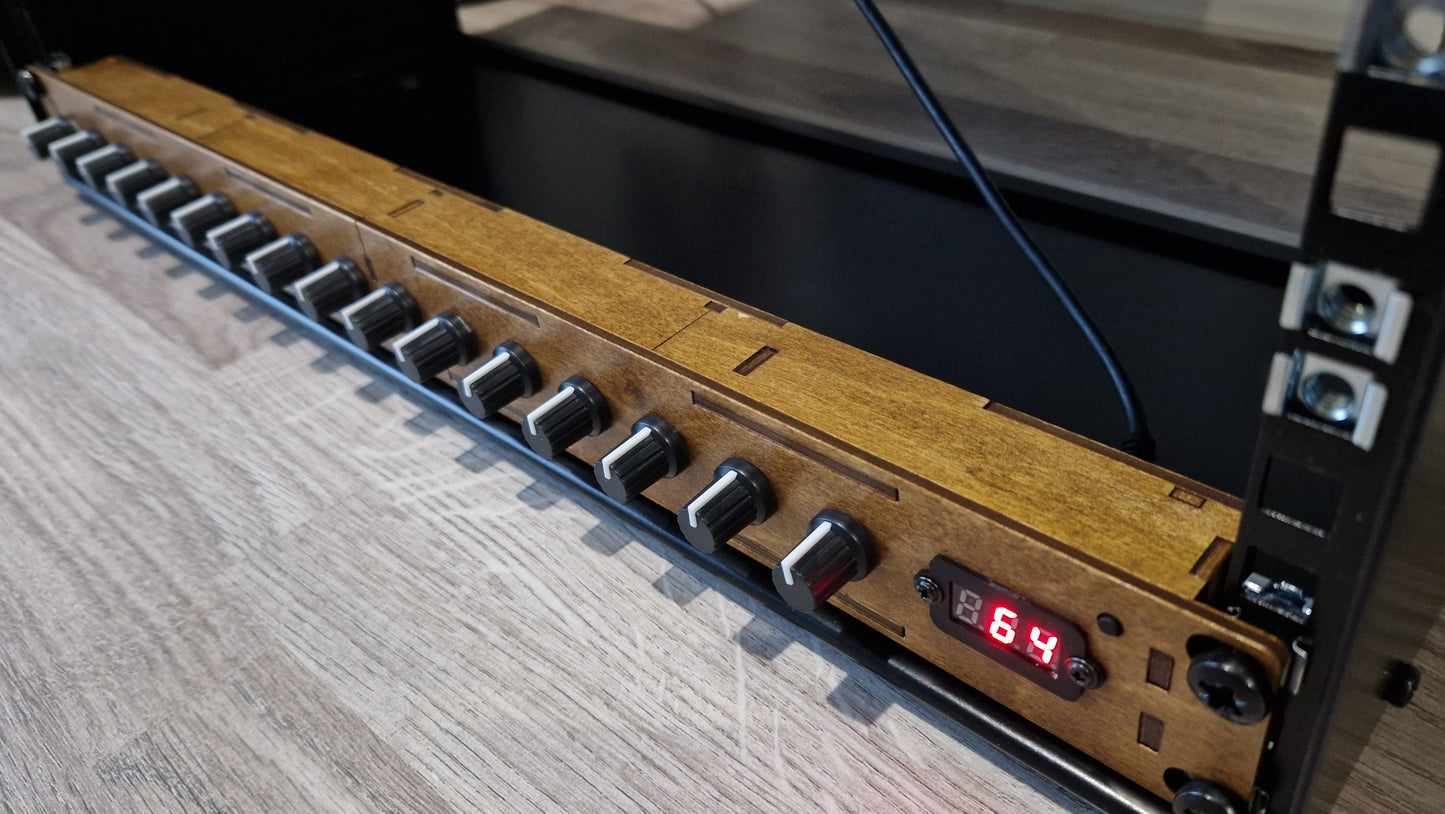

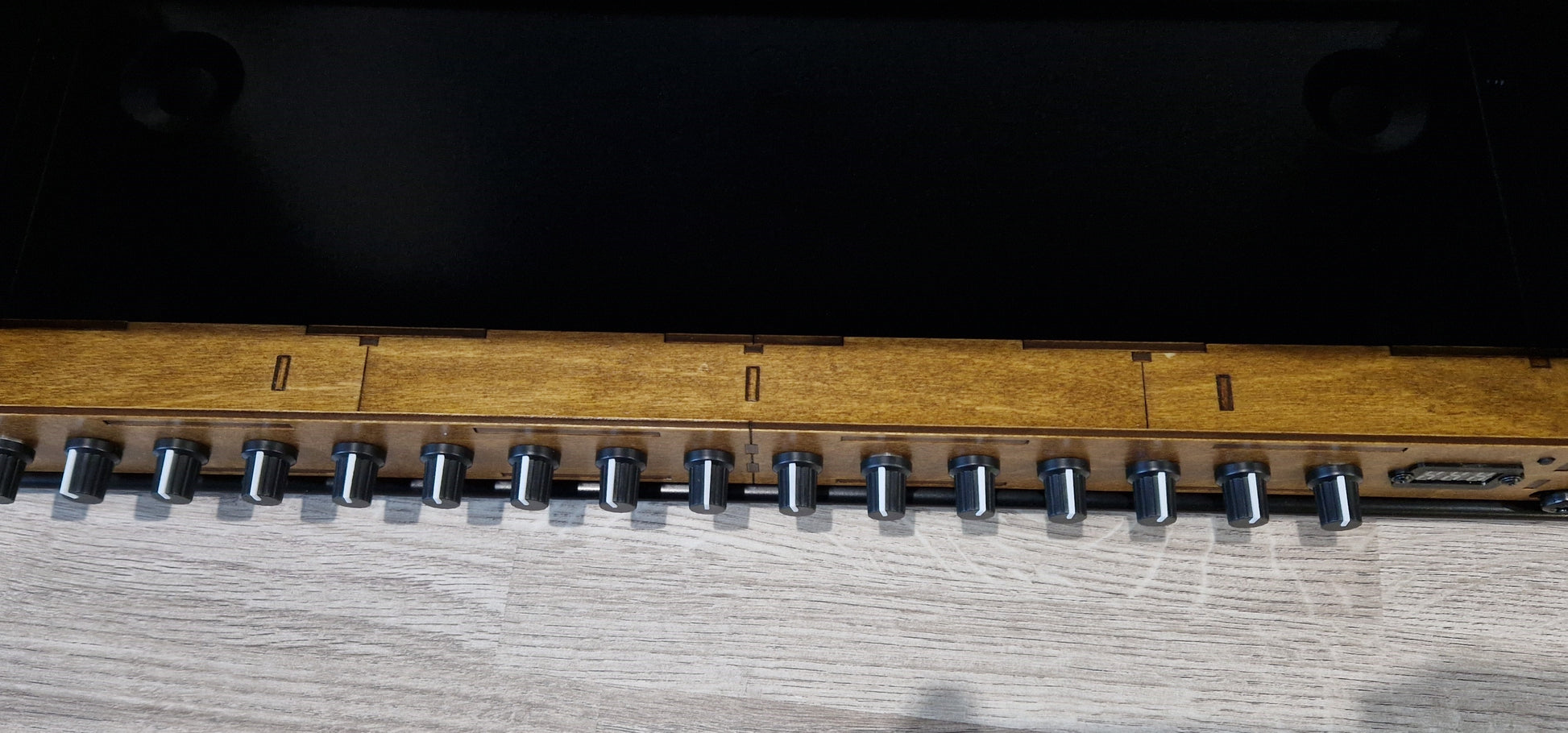

19"Rack Mount 16 knob USB MIDI and DIN MIDI Controller

19" Rack and screws not included controller only.

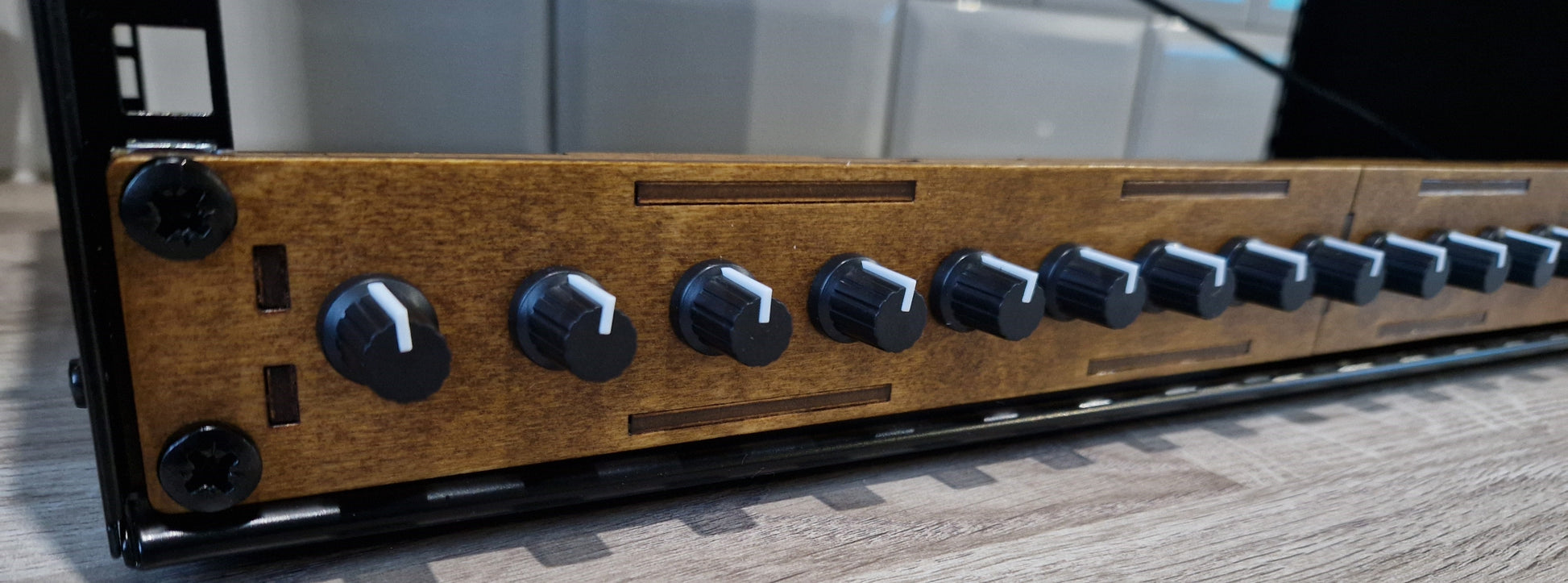

Hand assembled and painted with a golden pine finish on 3mm plywood,
The picture used of the Rack/controller is an example of the finished look, due to the nature of wood and wood grain each controller will have a slightly different finish and can result in a darker and lighter finish or different wood grain pattern than the one pictured.

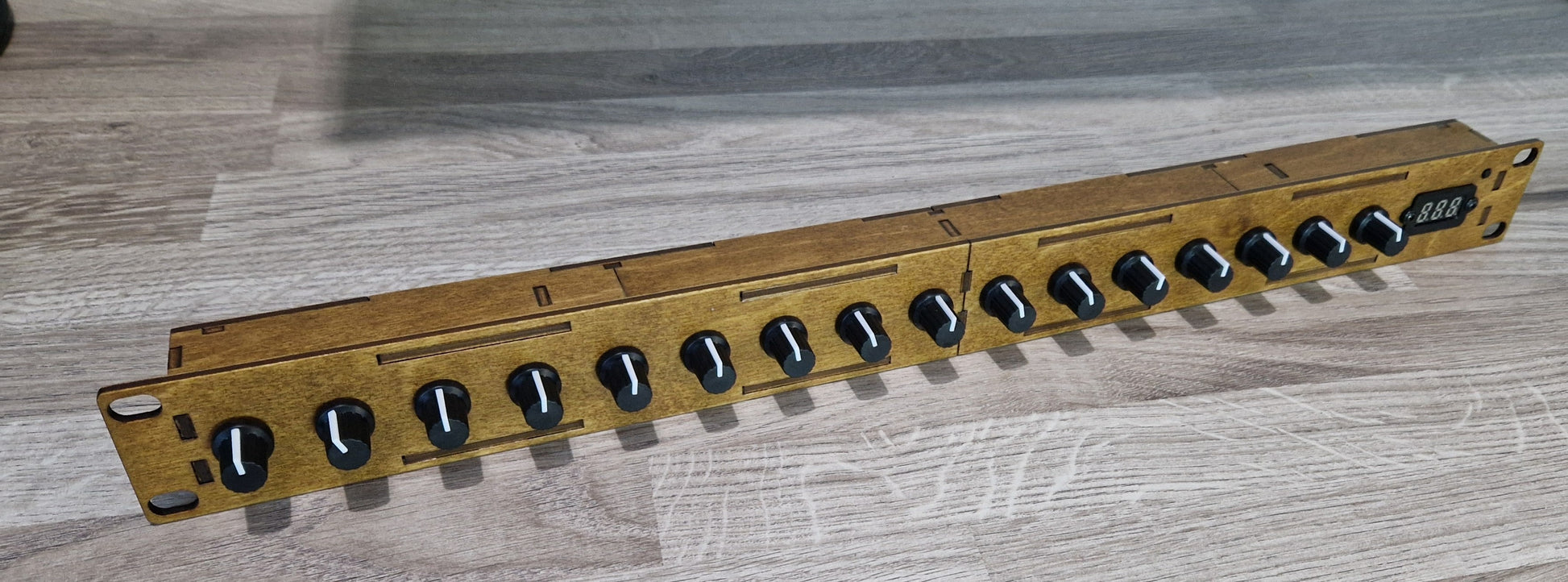

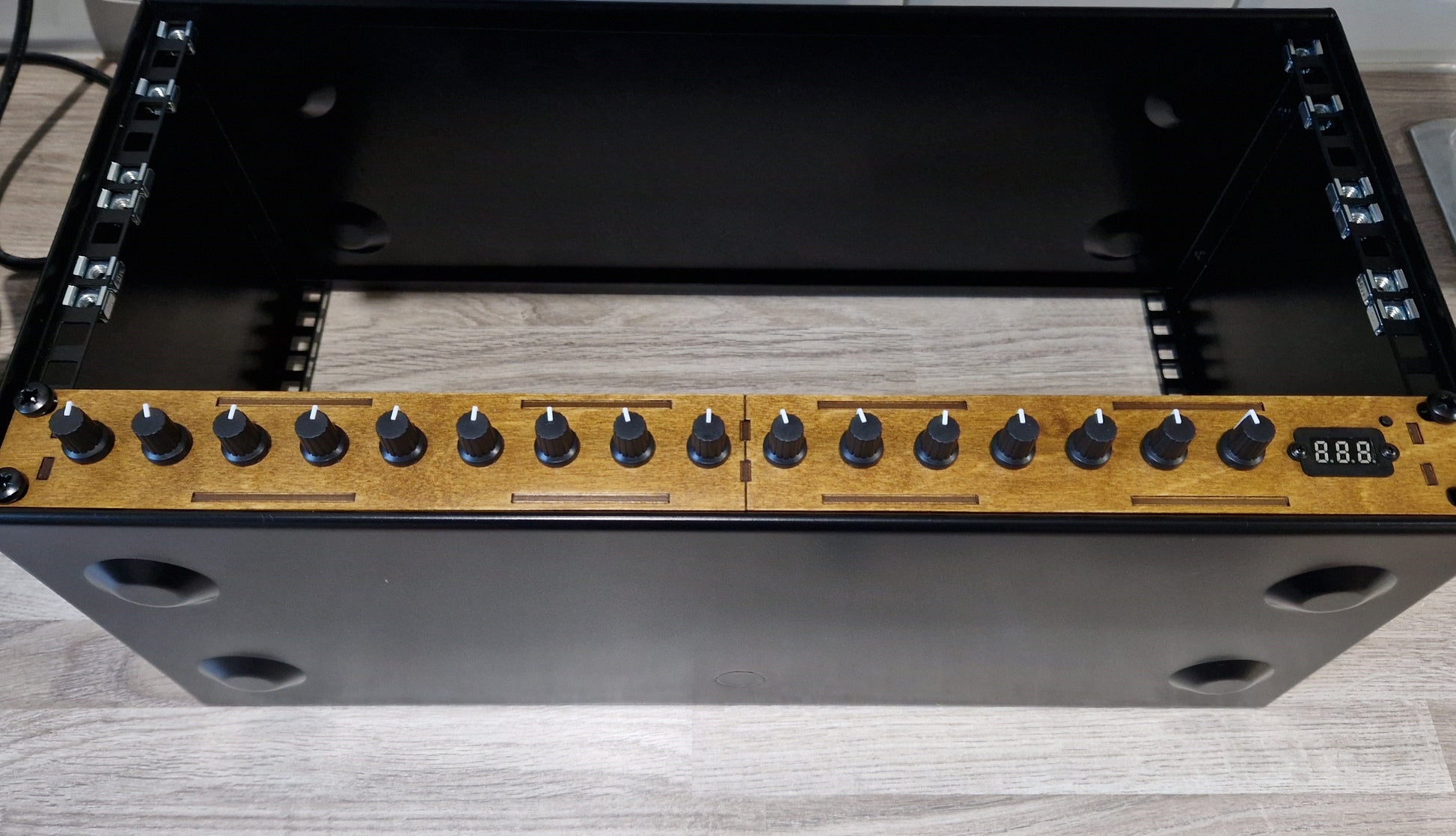

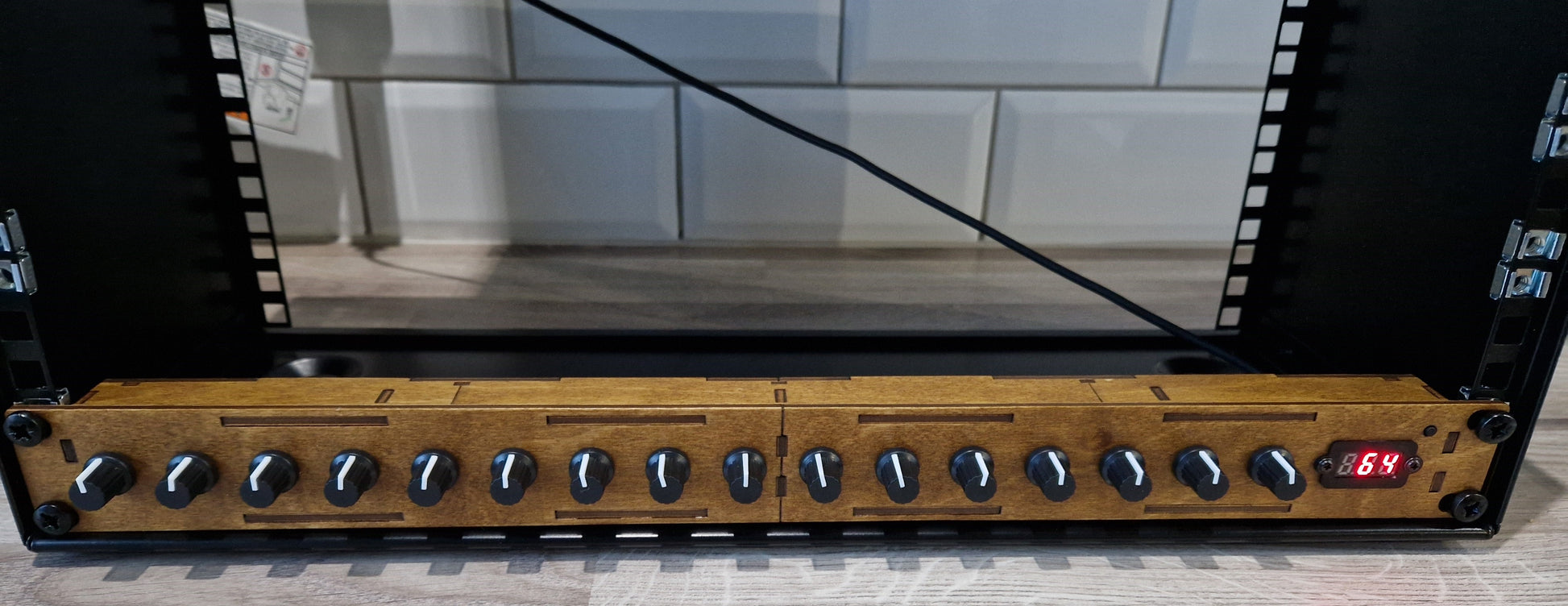

The rack size is 1u, the overall dimensions are 480mm x 44mm x 30mm

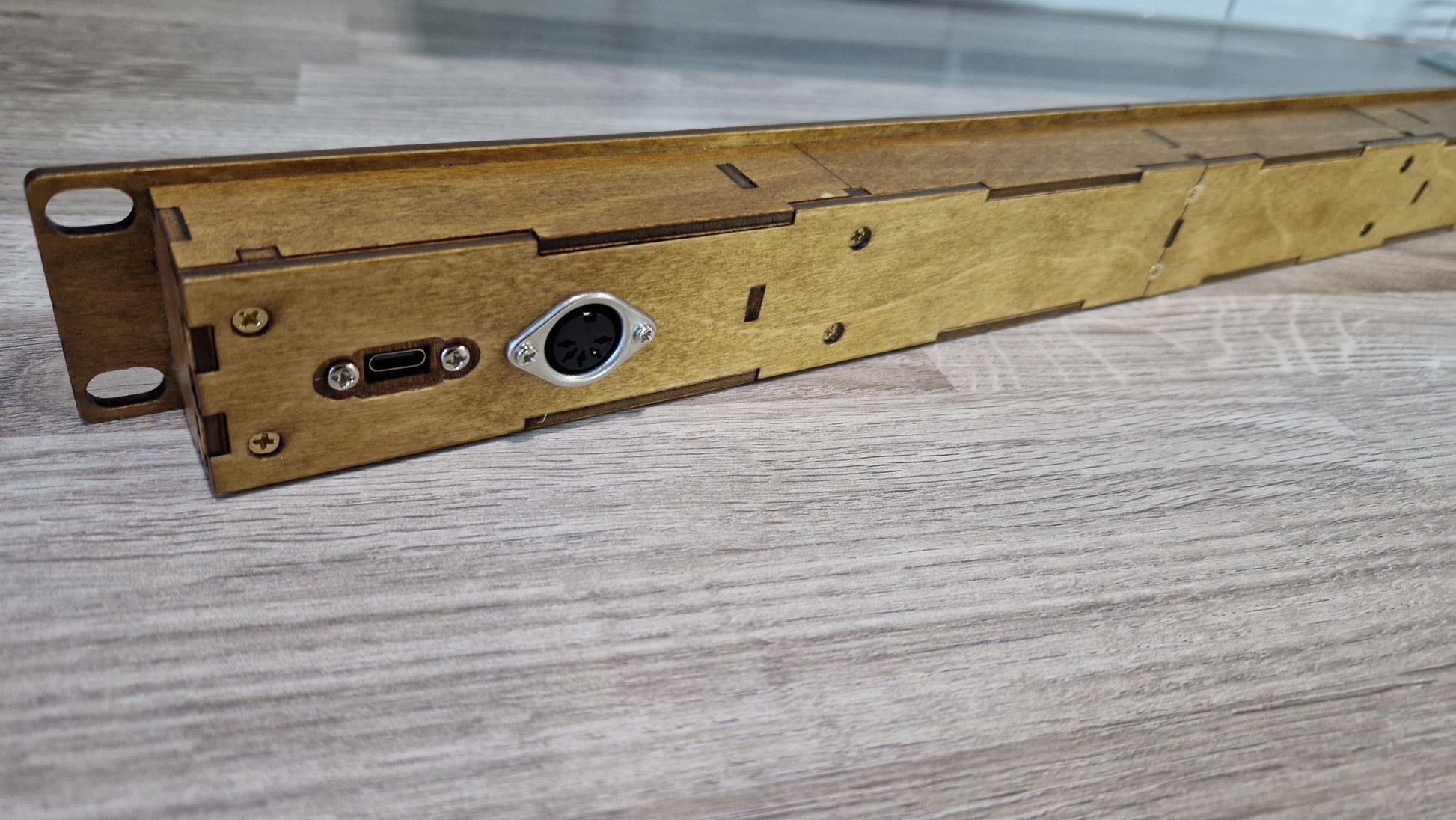

The controller is USB powered via the USB cable on the back, which is used for USB MIDI and is also needed to power the unit when only using the DIN MIDI socket, the controller is MIDI OUT only.

The knobs are potentiometers and are the version that stop (only turn 270 degrees 7 to 5 o’clock)

it can be used to control Ableton Live and other DAW software that allows MIDI learn/mapping and also any device that uses MIDI CCs (please refer to the manual of your device for the CC numbers).

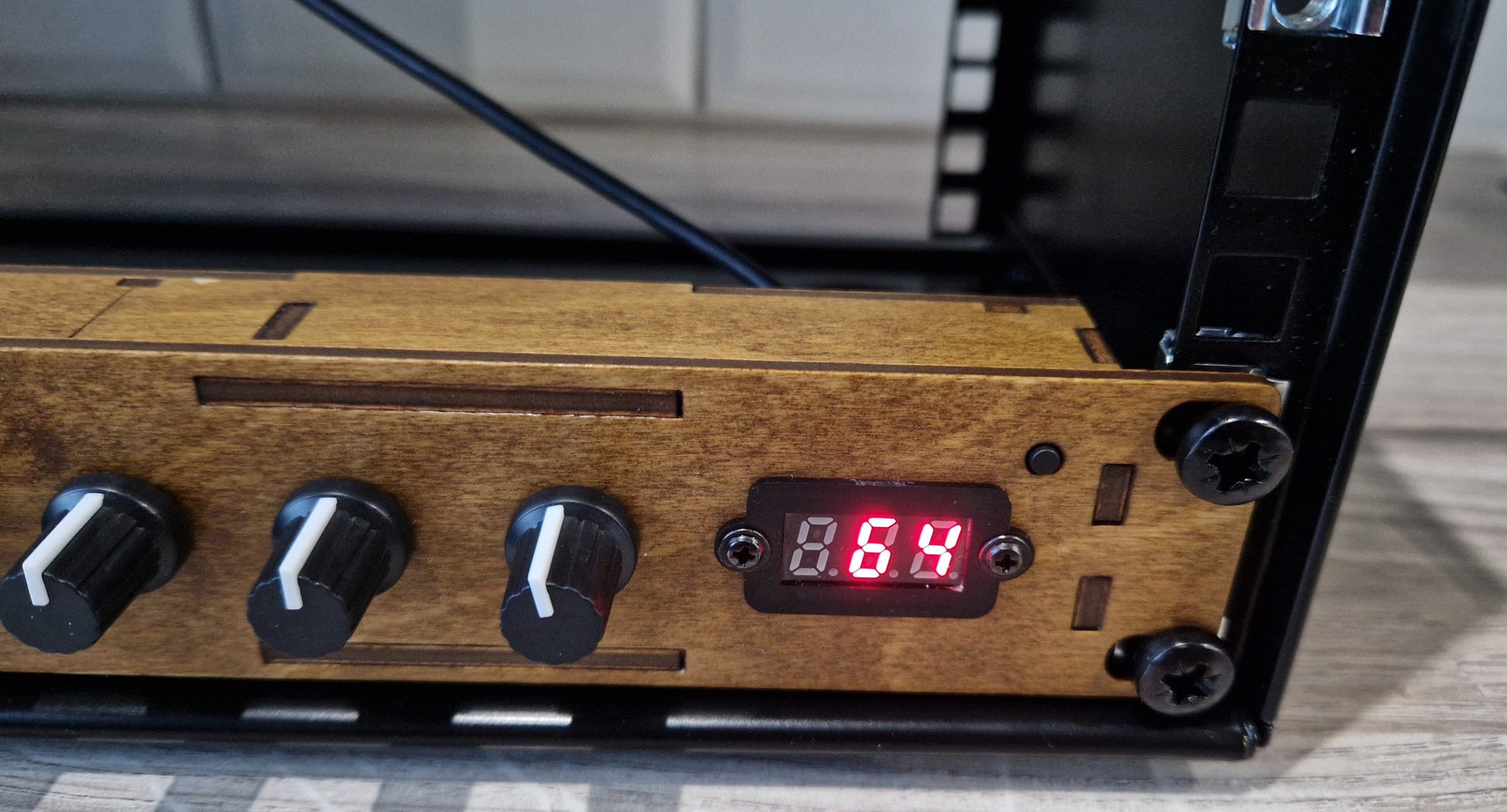

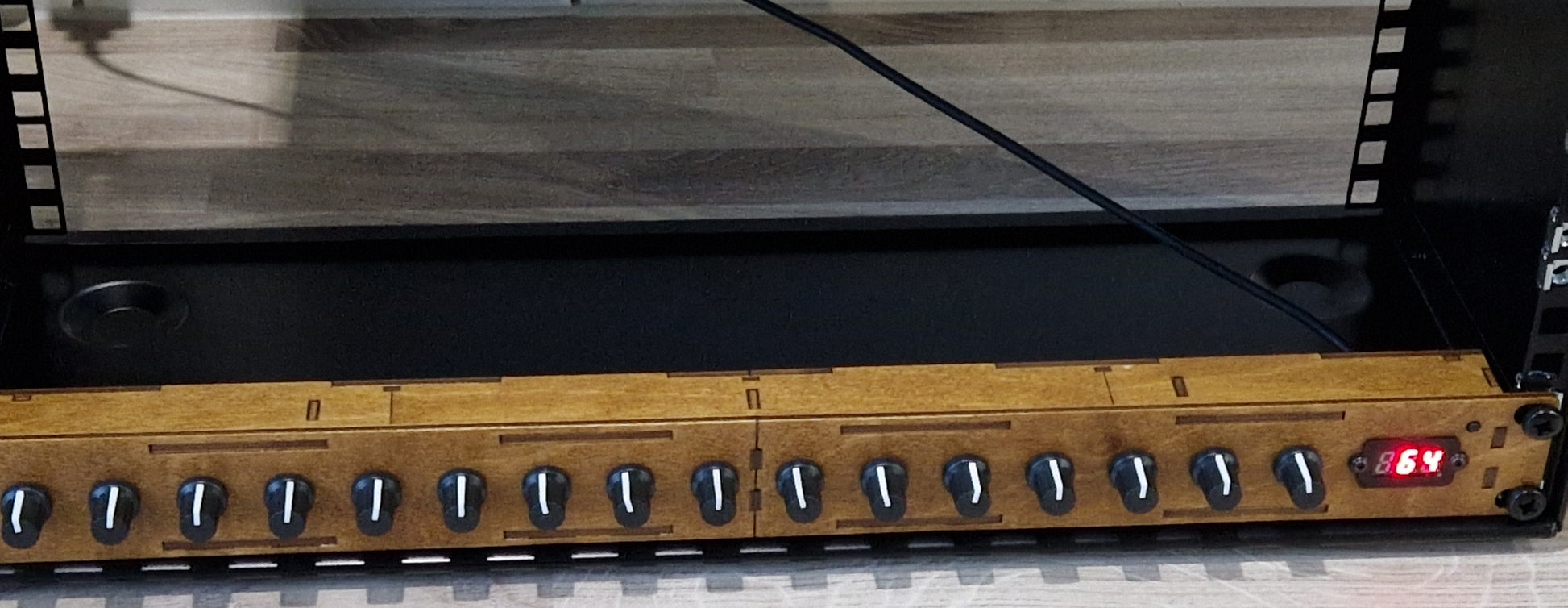

When a knob is moved the display shows the output CC value.

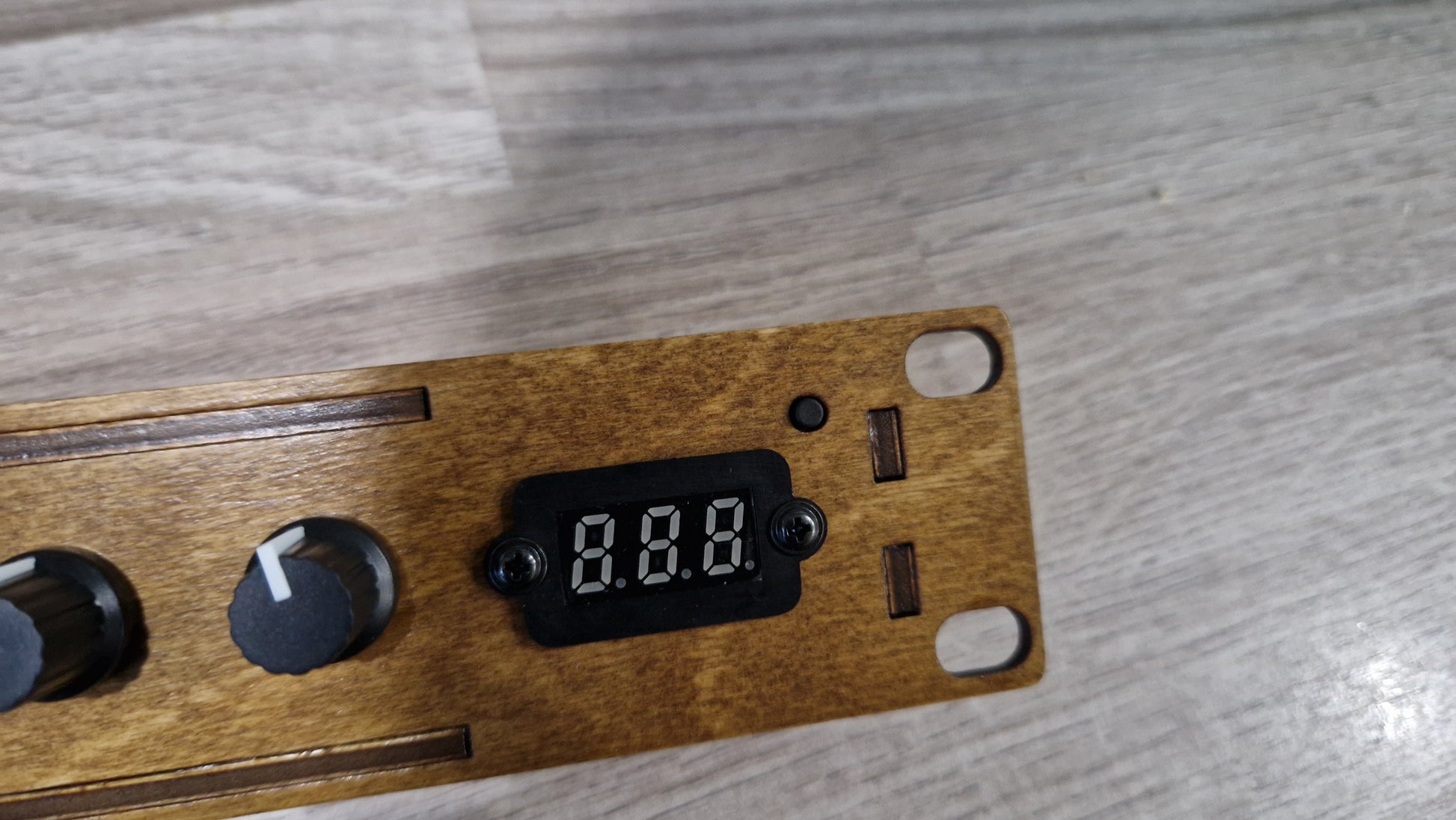

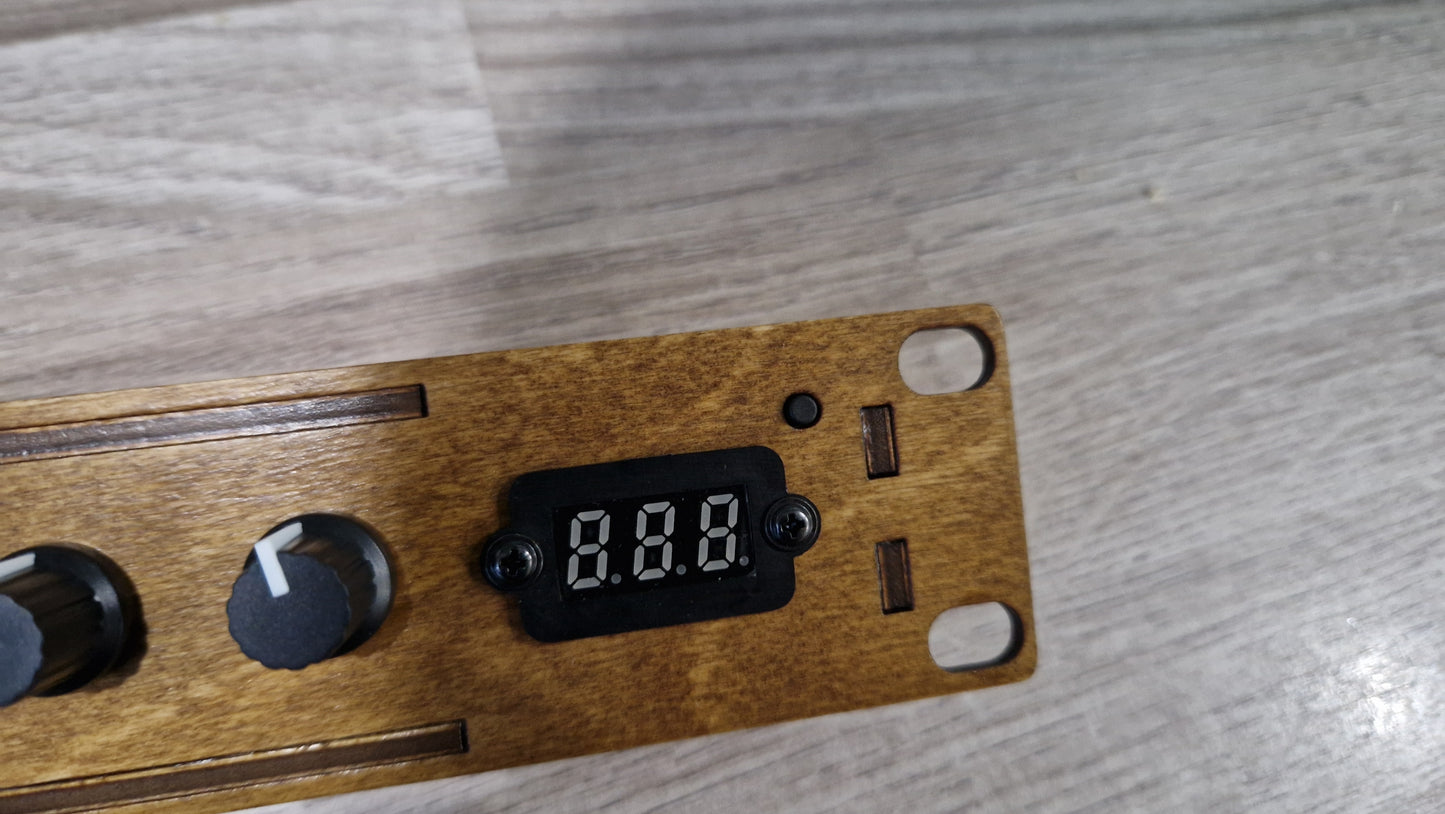

The CC number, MIDI Channel and RANGE of the knobs can be changed by using the display and small black button located next to the LED display

Each knob can also be set to a different channel allowing control of multiple devices
Setting are stored and remembered when powered off.
no other software is needed

Instructions on how to program the controller are below

View full details

19 inch Rack Mounted 16 knob controller

The USB cable is for USB MIDI but is also needed to power the controller when using the 5 Din socket and needs to be plugged into a USB port or a USB plug socket (phone charger plug)

WHEN MOUNTING THE CONTROLLER DO NOT OVERTIGHTEN THE SCREW AS IT WILL CRUSH THE WOOD
When used with a DAW only set the controller as an input device and not as an output device

Setting the CC number
To set the CC# that a knob controls press and hold the small button located on the top of the box, the display will show "CC-" now move the knob you want to change to the number of the CC you want it to control,
then let go of the button and the display will show 'CC-' then flash the new CC number of that knob,

Example
the cc# number is currently set to 11- expression and you would like to change it to cc number 74 - frequency cut off (filter) you would hold in the small button on top of the box and move the knob/fader until the display shows number 74, you would then release the small button and the display will show CC- then flash 74 and the cc of that knob is now set to 74.

Tip: If you find it difficult to stop on the exact number, for example you are trying to stop on 10 but it only changes between 9 and 11 go to 30+ then back down and you should be able to stop on 10.
Display the CC number a knob/fader is set to and the channel number
Press the small button TWO times and keep the button held in on the 2nd press and the display will show “dSp” (display) Now move a knob and the display will show the current set cc number, then release the button to show the channel.

Changing all the knob/fader channel numbers (1-16)
The channel is changed the same way the cc# is changed but you press the small button THREE times and keeping the button held in on the 3rd press and the display will show “CHA” (channel all) now move any knob/fader to the number of the channel you want all the faders to be set to
Then let go of the small button and the display will show “c” and the new channel number

Changing the channel of only one knob/fader (channel numbers 1-16)
changing just one knob channel is done the same way as all the channels but you press the small button four times and keep the button held in on the 4th time and the display will show “CHI” (channel Independent) now move a knob to the number of the channel you want that knob to be set to
Then let go of the small button and the display will show “c” and the new channel number of only that knob

Changing the Low range of a knob/fader (0-127)
Press the small button FIVE times and keep the button held in on the 5th press and the display will show “LO” (low)
Now move the knob you want to change the low range of and move it to the number you want it set to
Then let go of the small button and the display will show “LO” and flash the low range of that knob

Changing the high range of a knob/fader (0-127)
Press the small button SIX times and keep the button held in on the 6th press and the display will show “HI” (high)
Now move the knob you want to change the high range of and move it to the number you want it set to
Then let go of the small button and the display will show “HI” and flash the high range of that knob
