32 Knob USB AND DIN MIDI controller
32 Knob USB AND DIN MIDI controller
UK shipping £5. Europe £10. USA £15. Rest of World £15
Customs Tax is not included in the price and will be collected by customs
Low stock: 1 left
Couldn't load pickup availability
Share
USB MIDI and DIN MID Controller with 32 knobs,
Detachable Type-C USB connection
(2m Type-C to Type-A cable included).

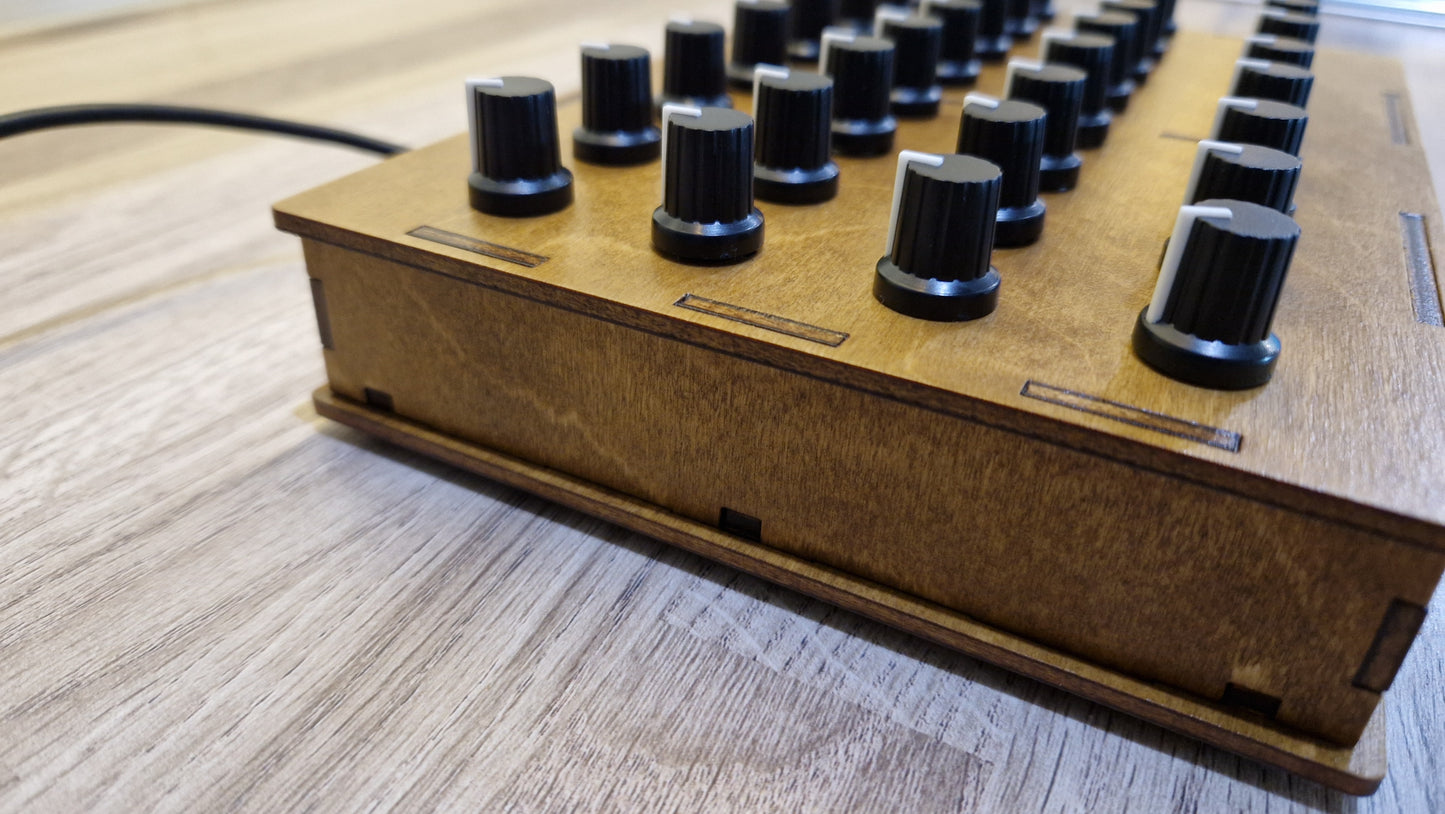

Made from 3mm plywood

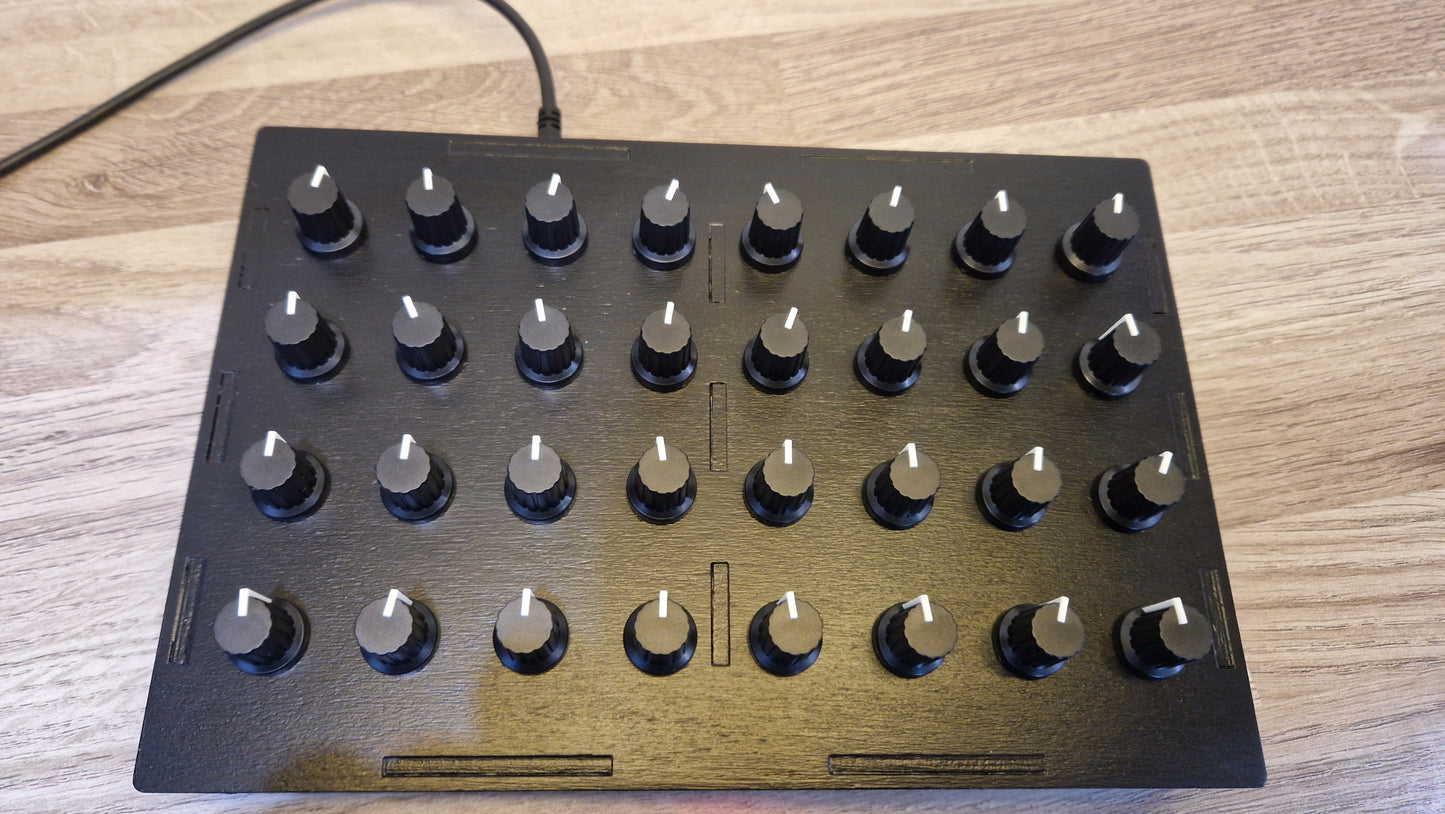

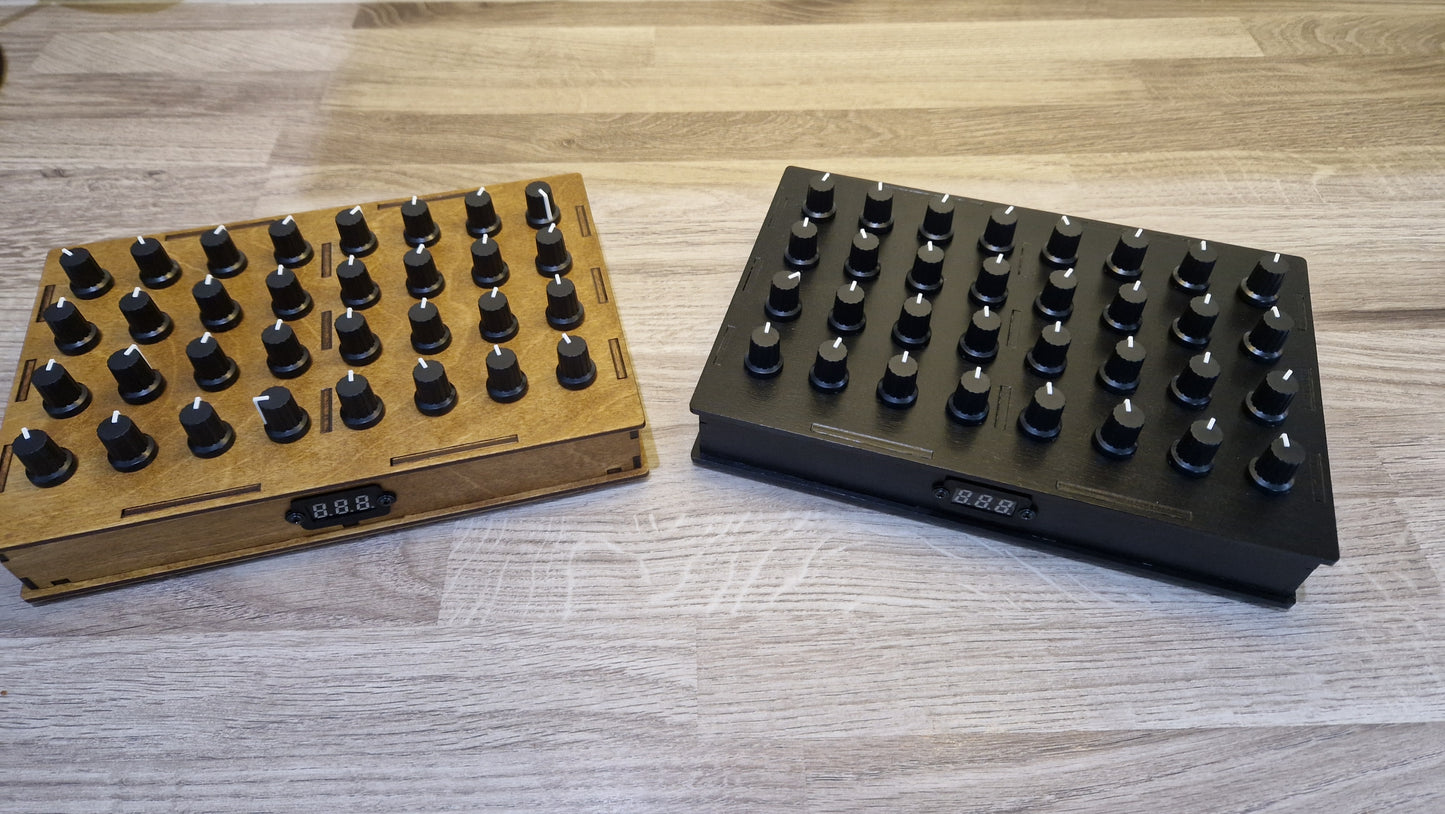

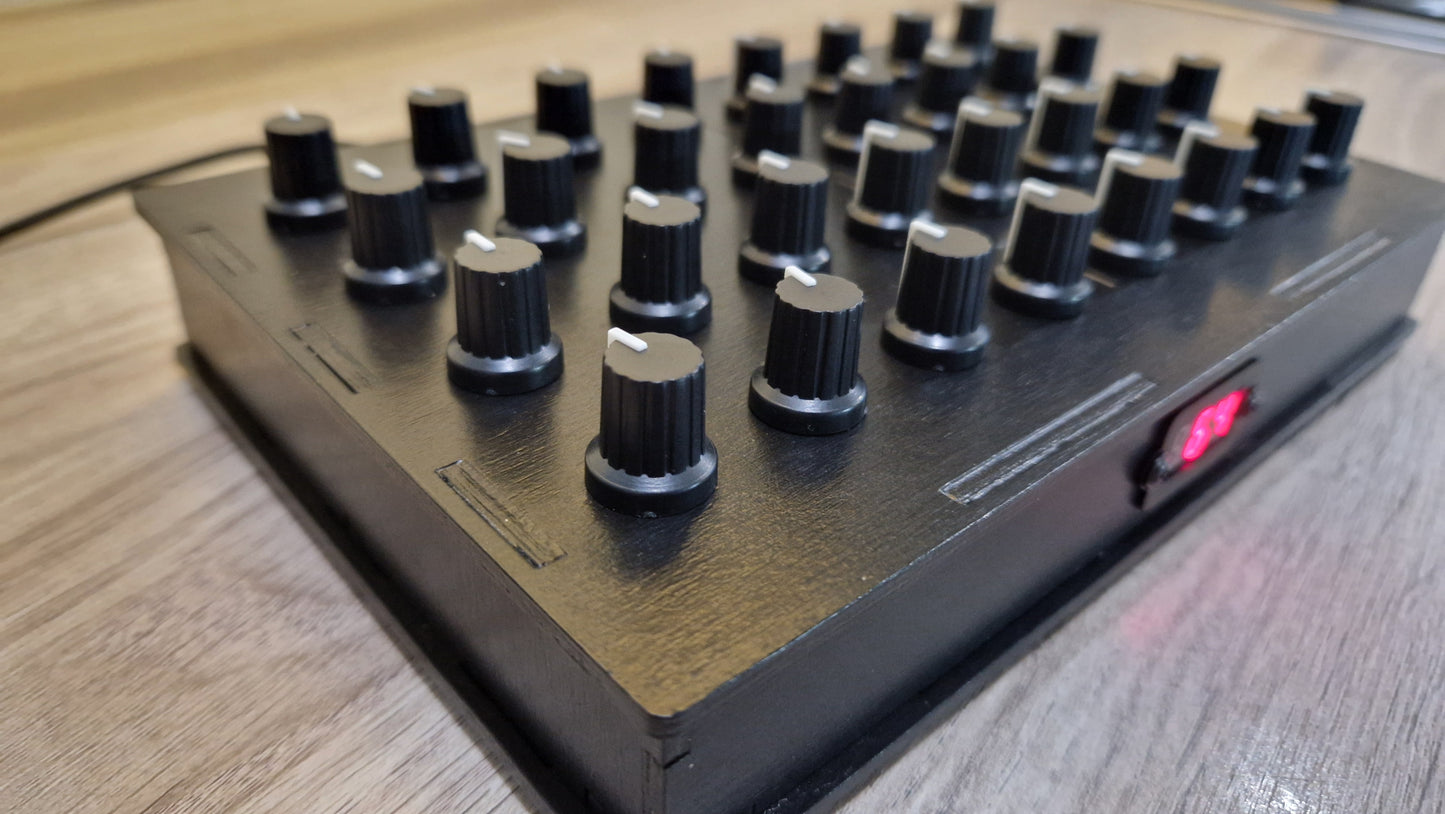

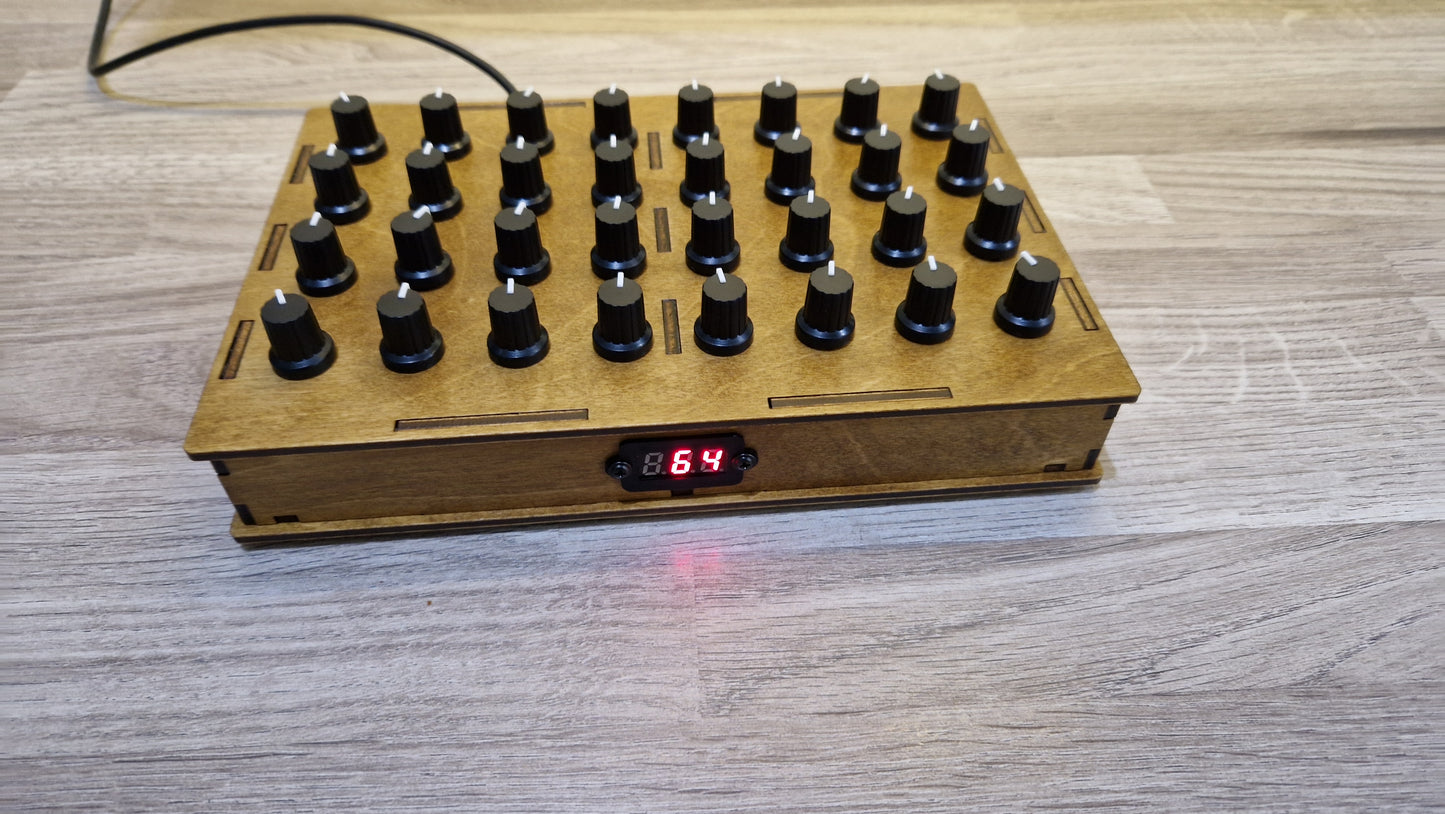

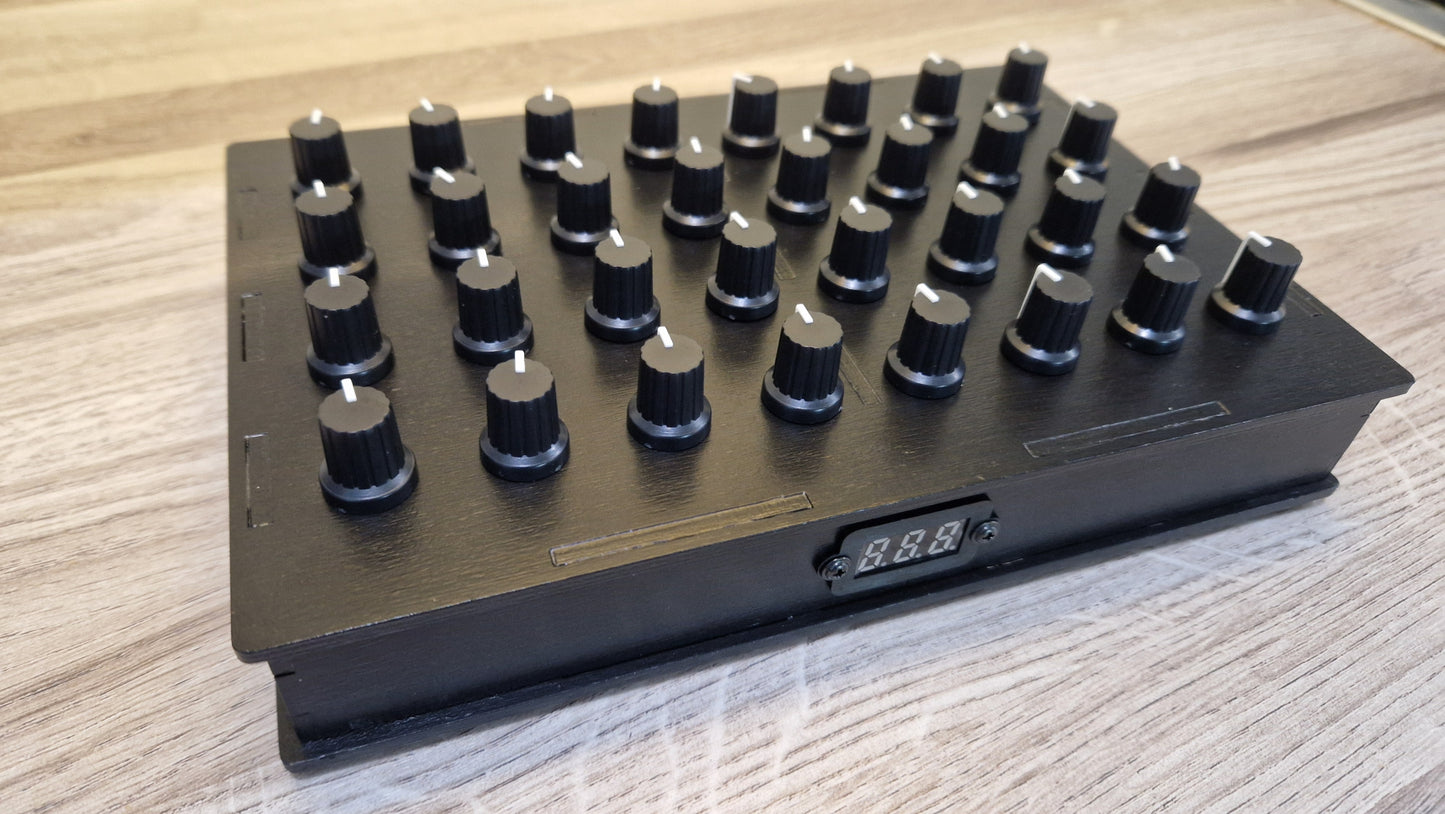

Hand assembled and painted in a pine or black finish

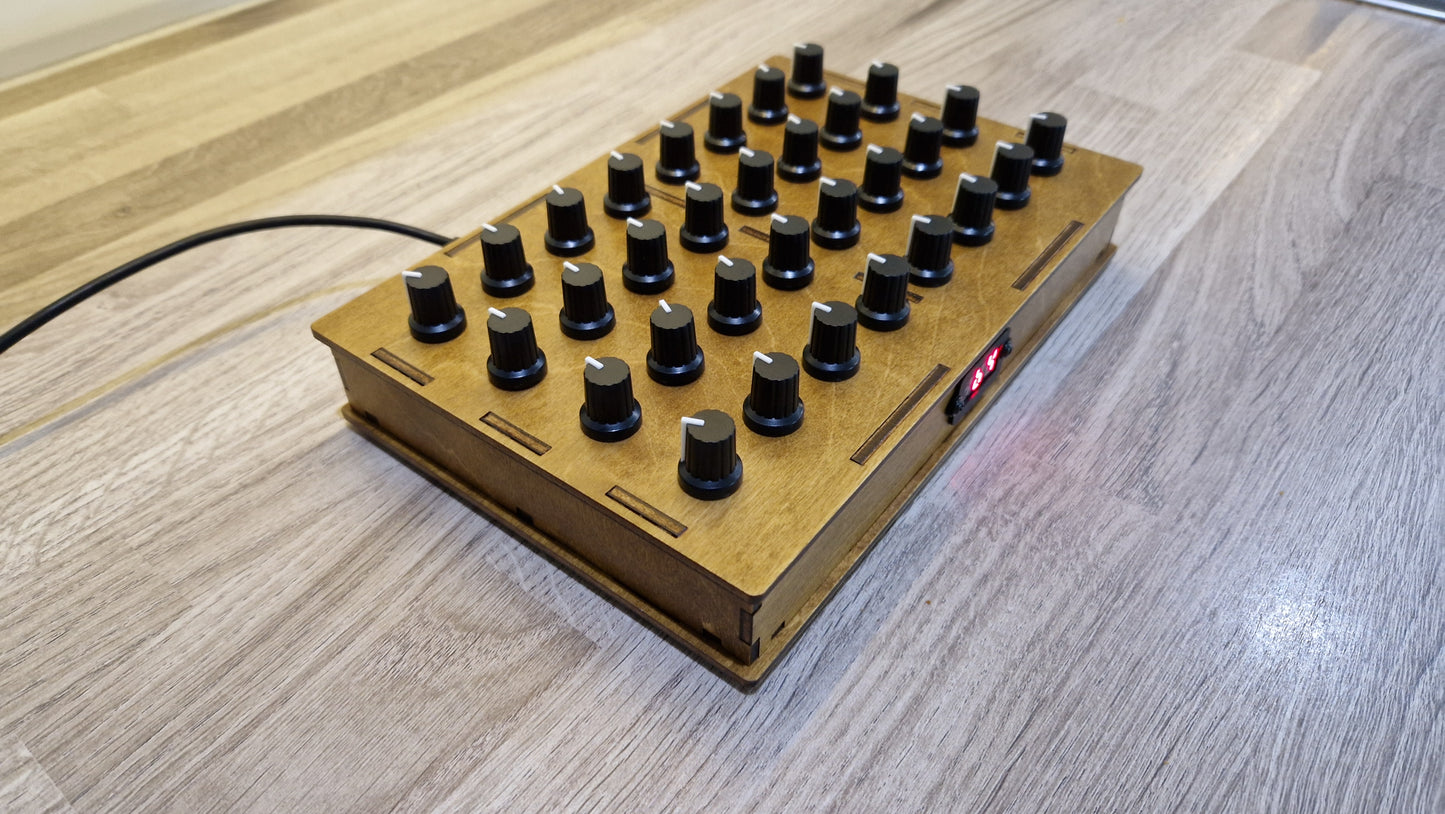

The picture used of the controller is an example of the finished look, due to the nature of wood and wood grain, each controller will have a slightly different finish and can result in a darker and lighter finish or different wood grain pattern then the one pictured.

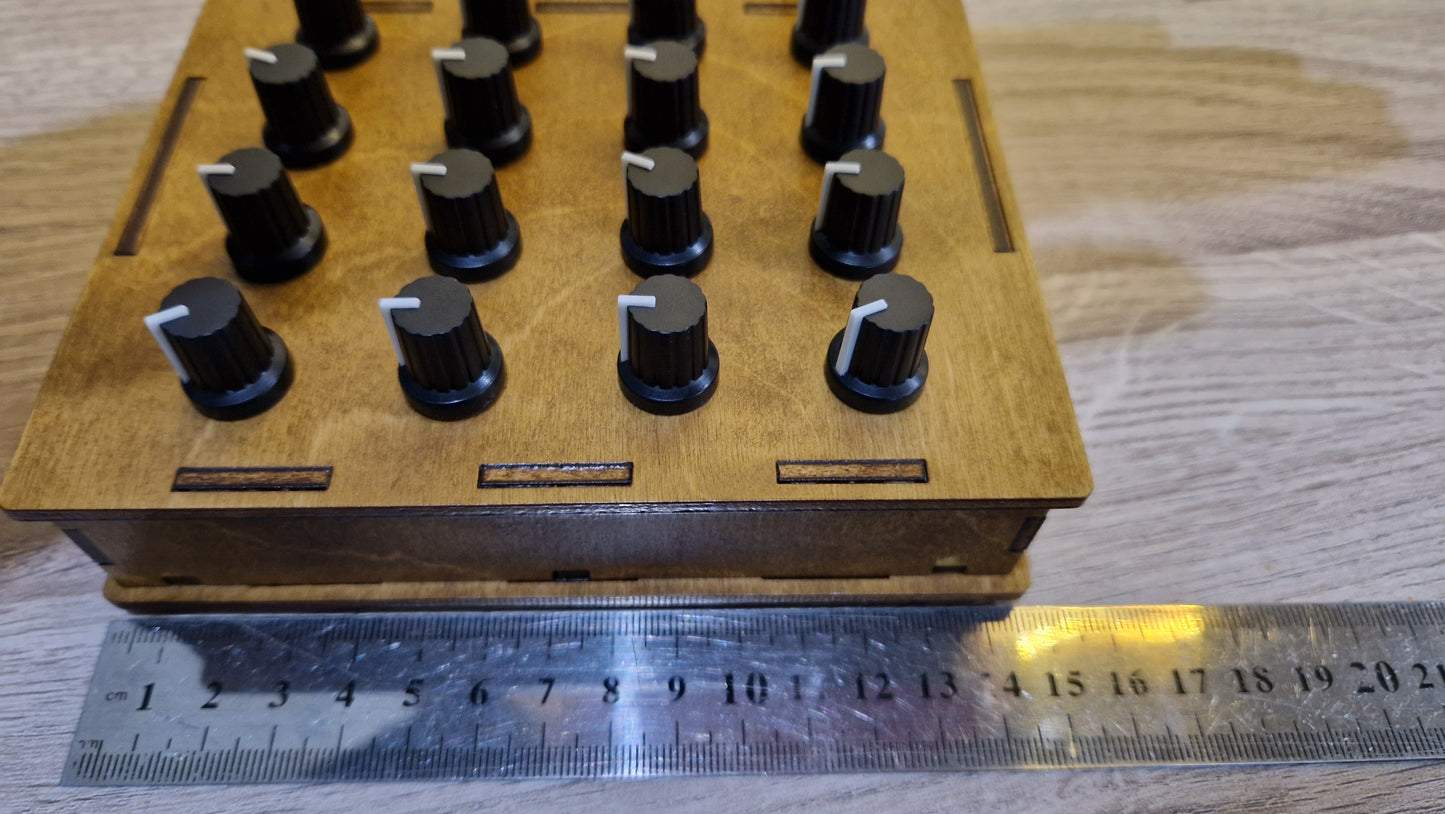

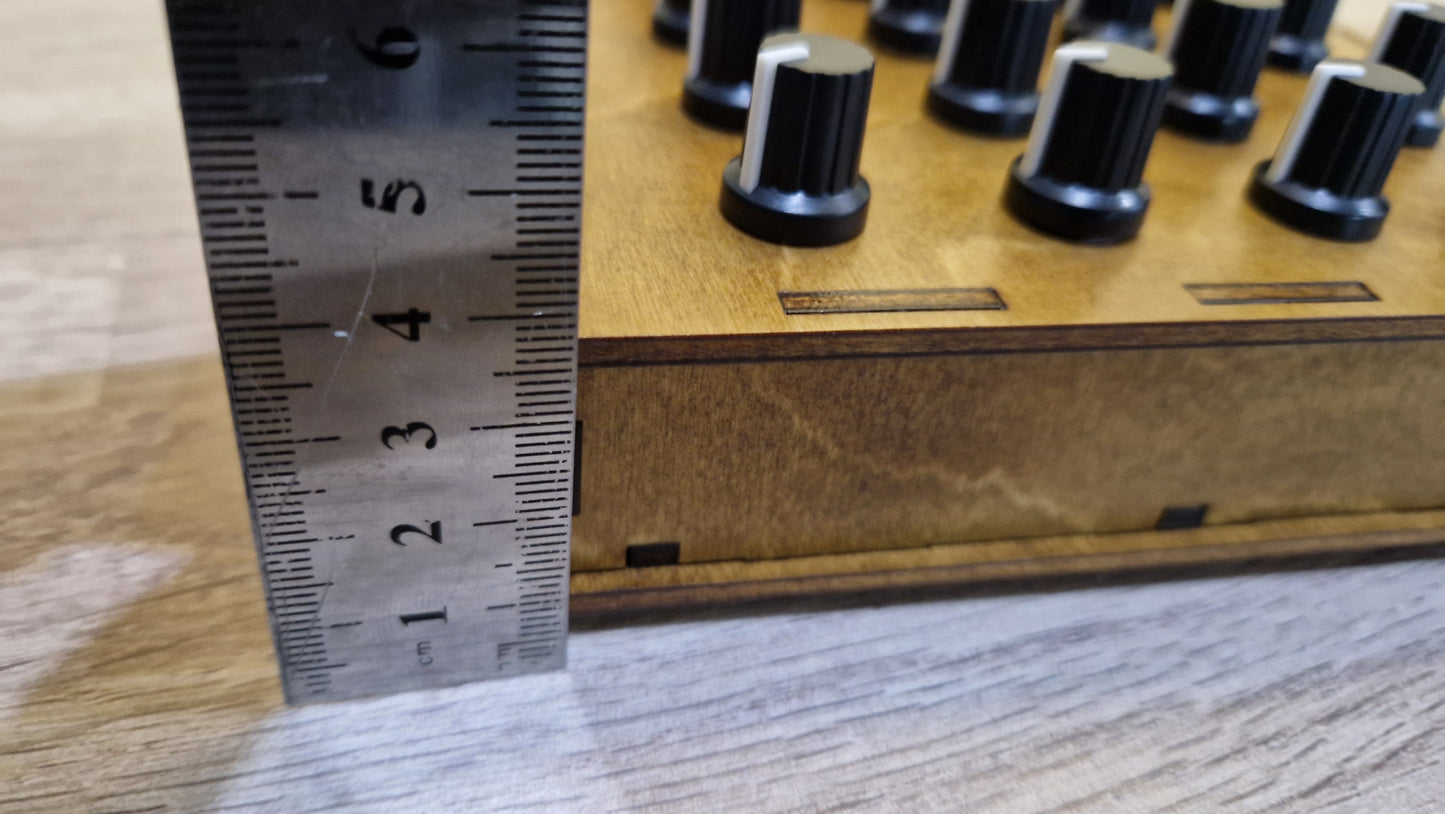

Box dimensions are 140mm x 210 mm x 40mm.

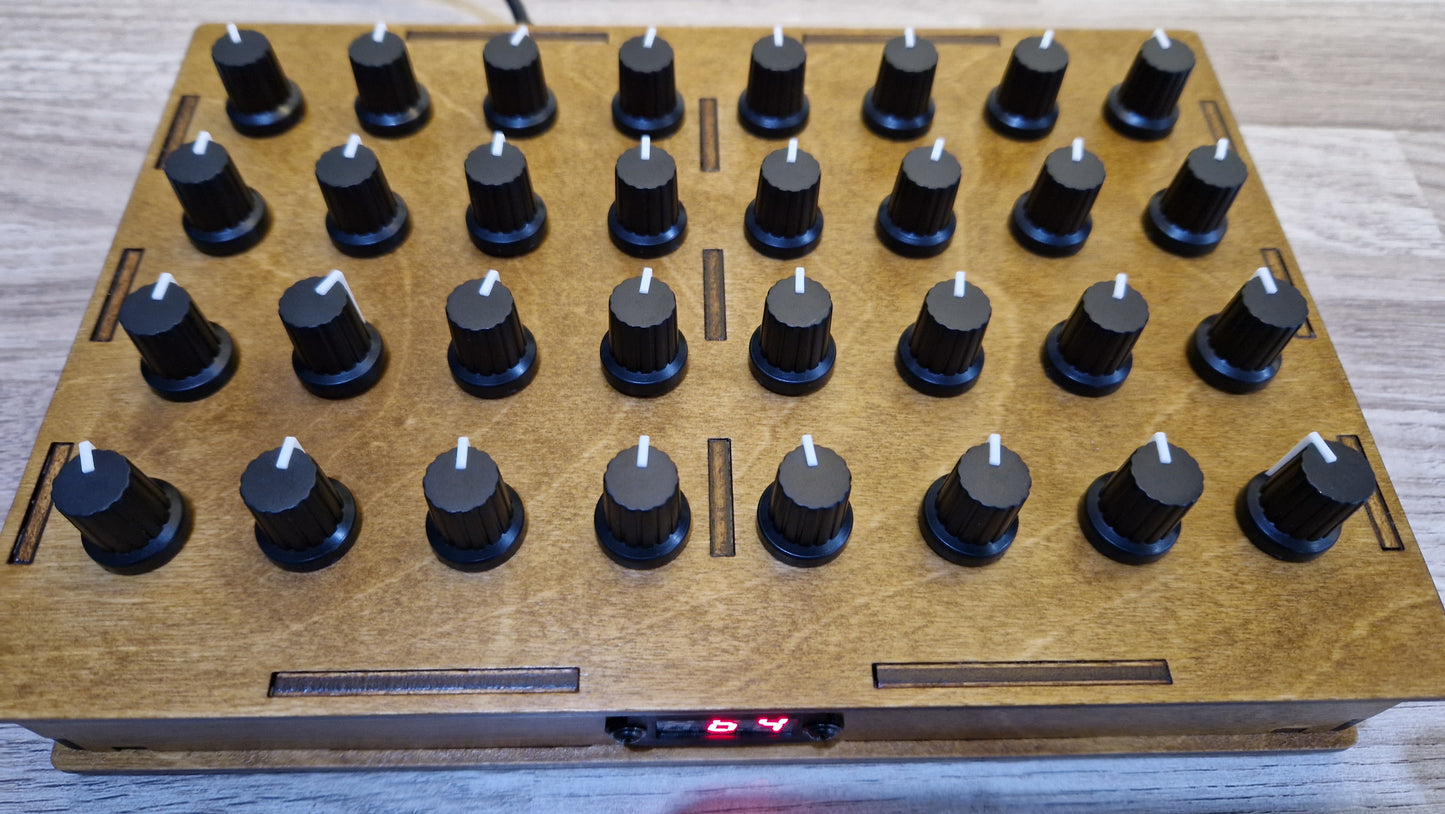

The knobs are potentiometers and are the version that stop
(only turn 270 degrees 7 to 5 o’clock)
Can be used to control Ableton Live and other DAW software that allows MIDI learn/mapping and also any device that uses MIDI CCs (please refer to the manual of your device for the CC numbers).

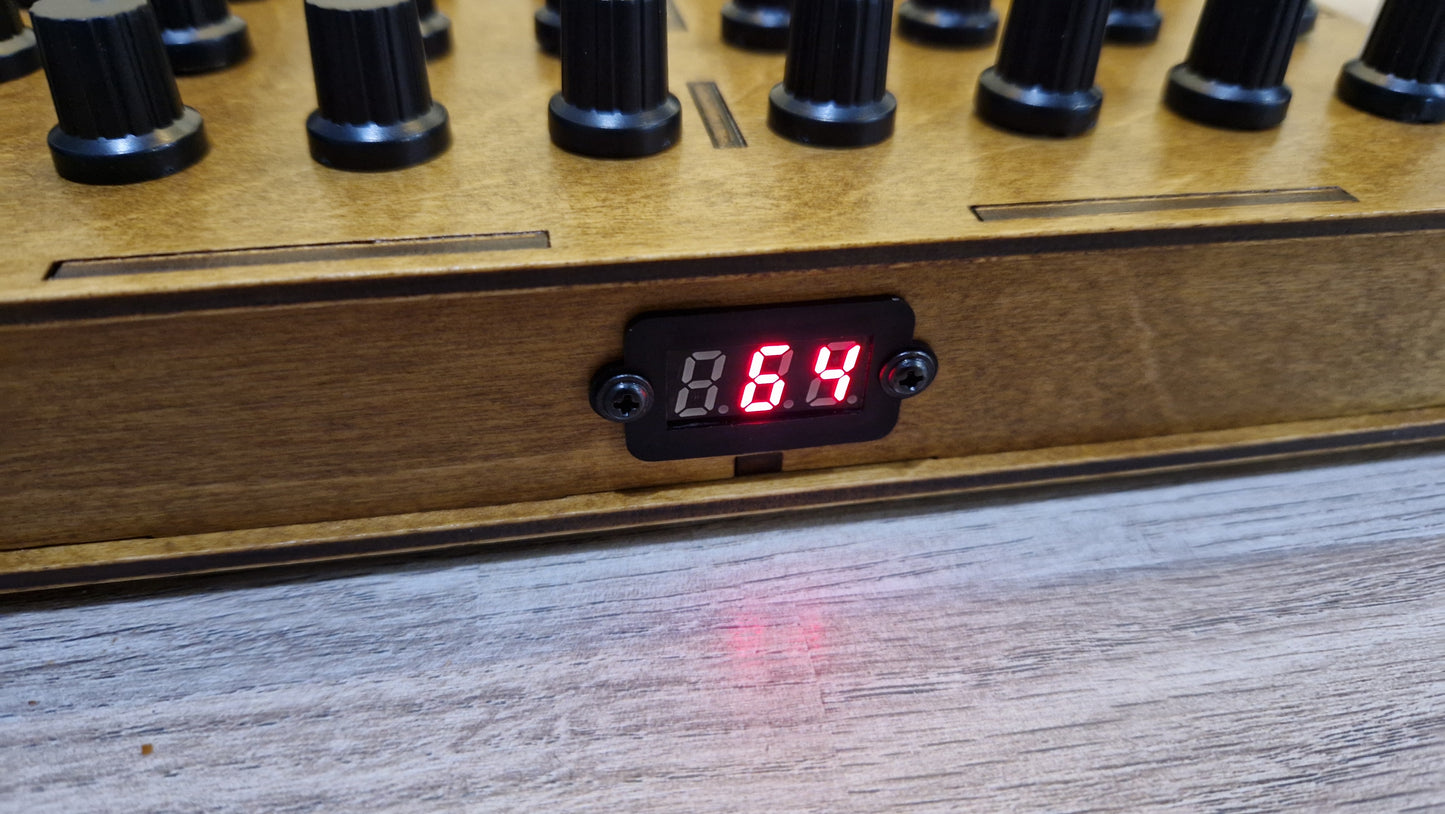

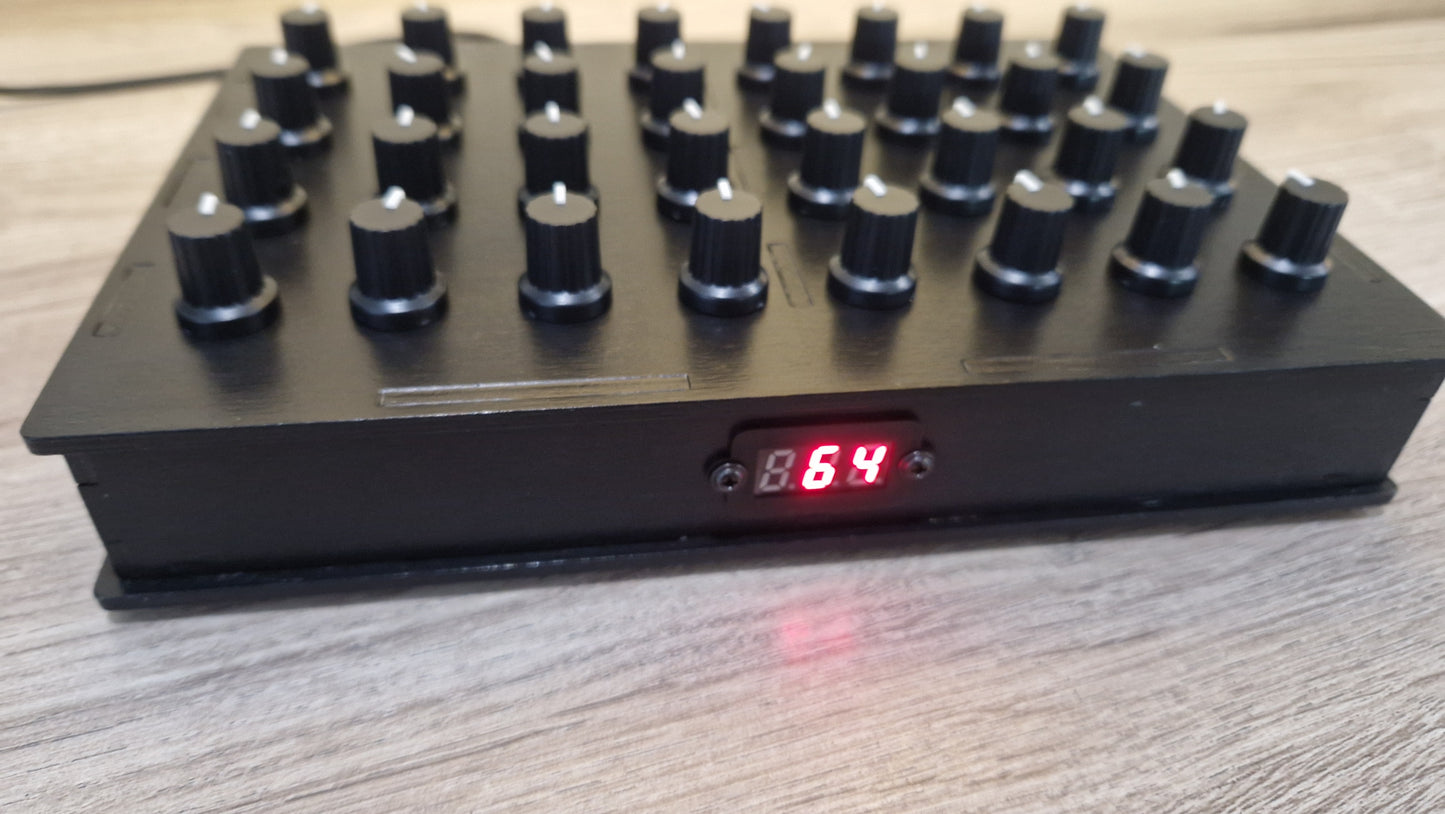

When a fader is moved the display shows the output CC value.

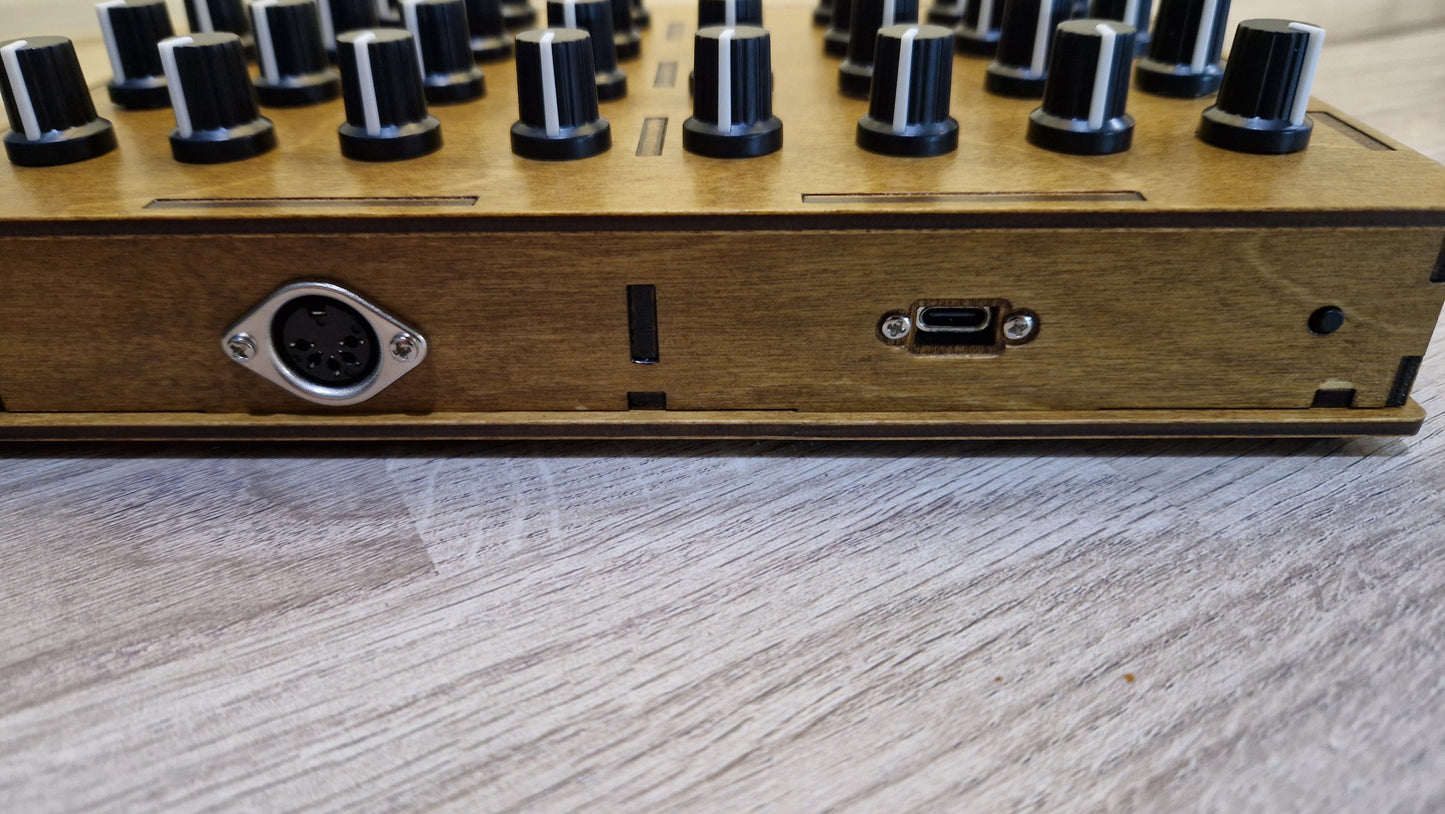

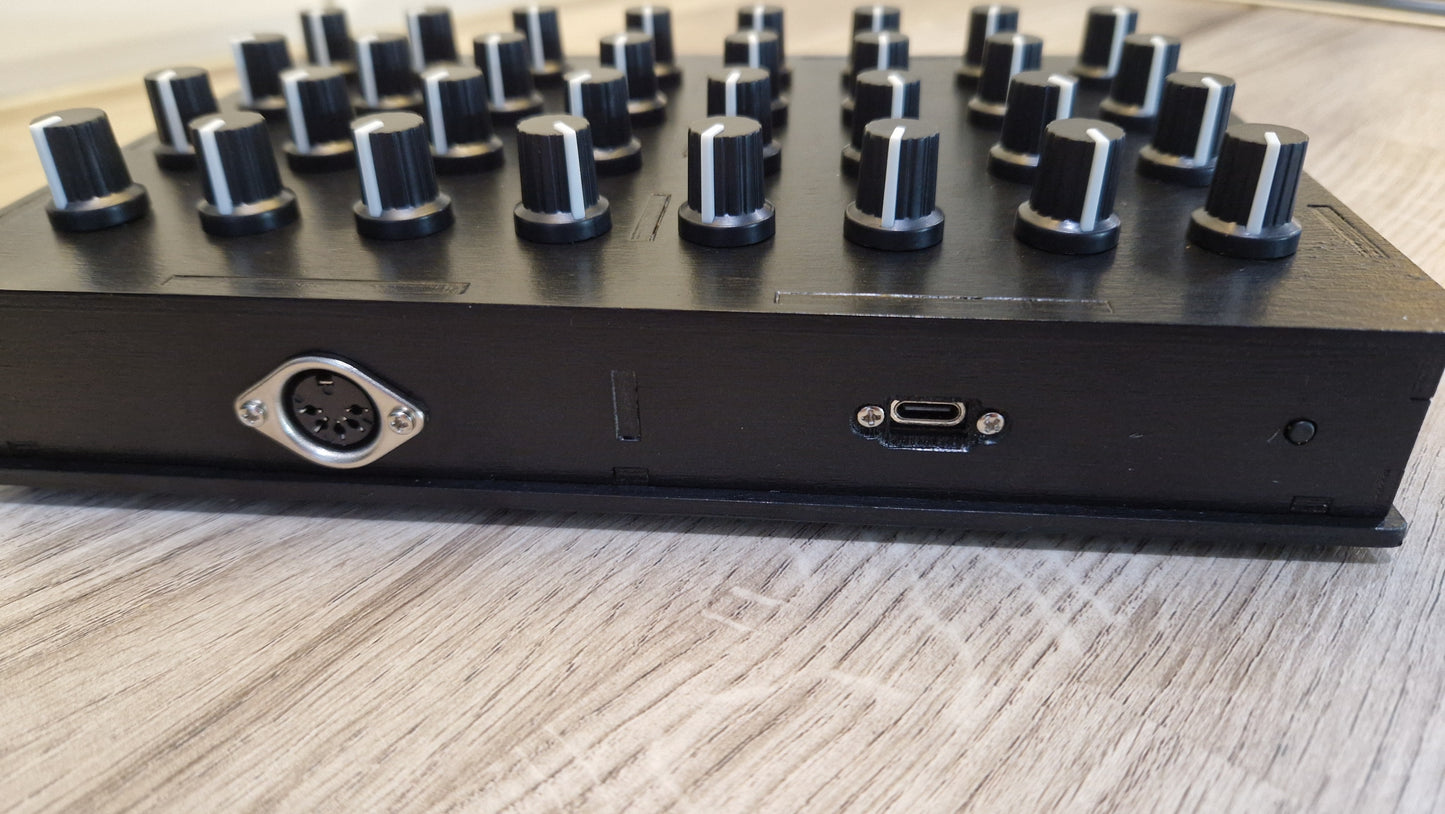

The CC number, MIDI Channel of the knobs can be changed by using the display and small button located on the USB side of the box,
Changes made to a preset are automaticity stored and remembered when powered off.
No extra software is needed.
Each knob can also be set to a different channel allowing control of multiple devices,
when used with a DAW only set the controller as an input device and not as an output device
Instructions on how to program the controller are below

















32 knob controller instructions

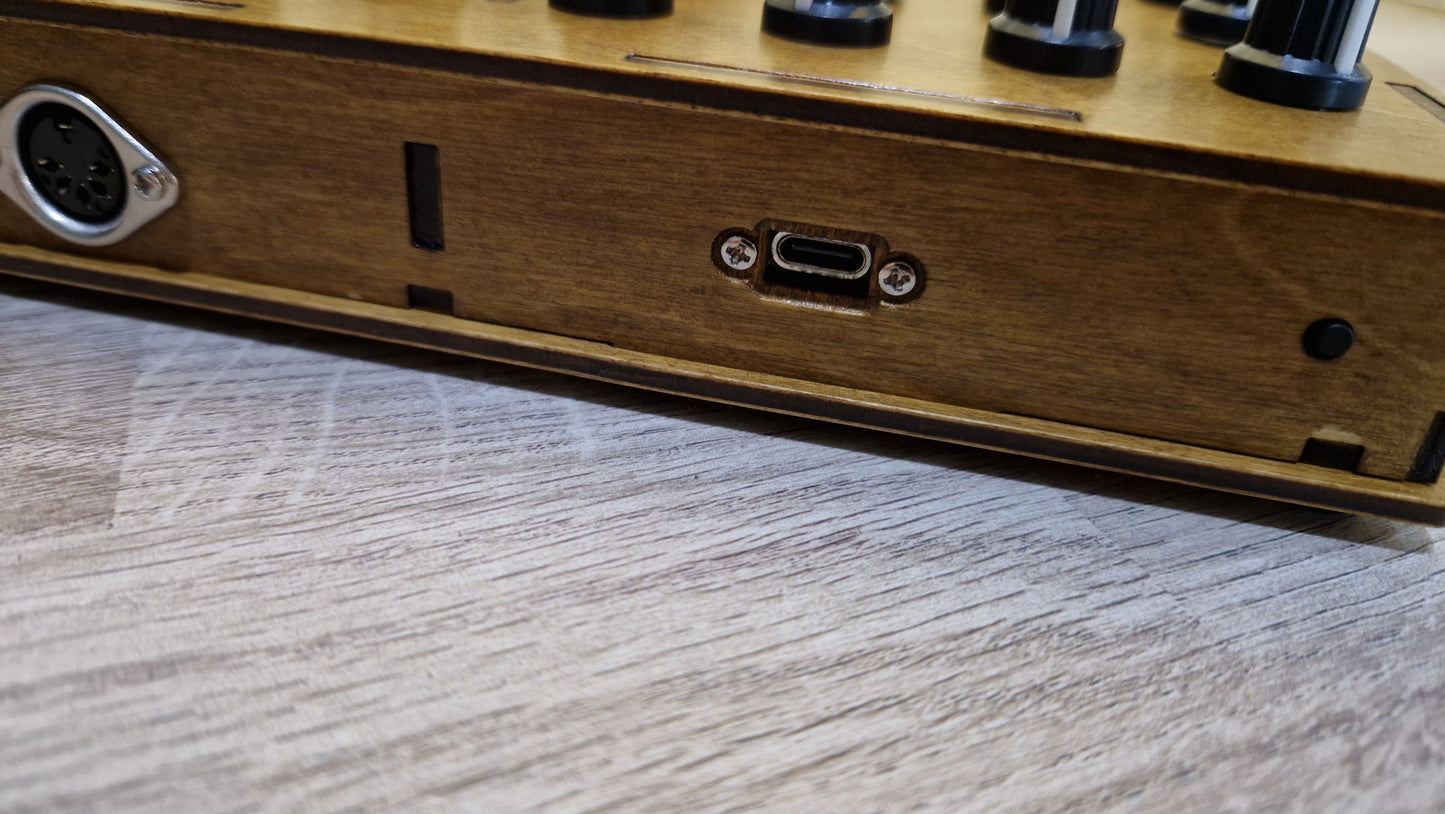

The USB cable is for USB MIDI but is also needed to power the controller when using the 5 Din socket
and needs to be plugged into a USB port or a USB plug socket (phone charger plug)
when used with a DAW only set the controller as an input device and not as an output device
Setting the CC number
To set the CC# that a knob/fader controls press and hold the small button located on the top of the box, the display will show "CC-"
Now move the knob/fader you want to change to the number of the CC you want it to control,
then let go of the button and the display will show 'CC-' then flash the new CC number of that knob/fader,
Example
the cc# number is currently set to 11 - expression and you would like to change it to cc number 74 - frequency cut off (filter) you would hold in the small button on top of the box and move the knob/fader until the display shows number 74, you would then release the small button and the display will show CC- then flash 74 and the cc of that knob/fader is now set to 74
Tip: If you find it difficult to stop on the exact number, for example you are trying to stop on 10 but it only changes between 9 and 11 go to 30+ then back down and you should be able to stop on 10.
Changing all the knob/fader channel numbers (1-16)
The channel is changed the same way the cc# is changed but you press the small button two times and keeping the button held in on the 2rd press and the display will show “CHA” (channel all) now move any knob/fader to the number of the channel you want all the faders to be set to
Then let go of the small button and the display will show “c” and the new channel number
Changing the channel of only one knob/fader (channel numbers 1-16)
changing just one fader/knob channel is done the same way as all the channels but you press the small button three times and keep the button held in on the 3rd time and the display will show “CHI” (channel Independent) now move a knob/fader to the number of the channel you want that fader/knob to be set to
Then let go of the small button and the display will show “c” and the new channel number of only that fader/knob
