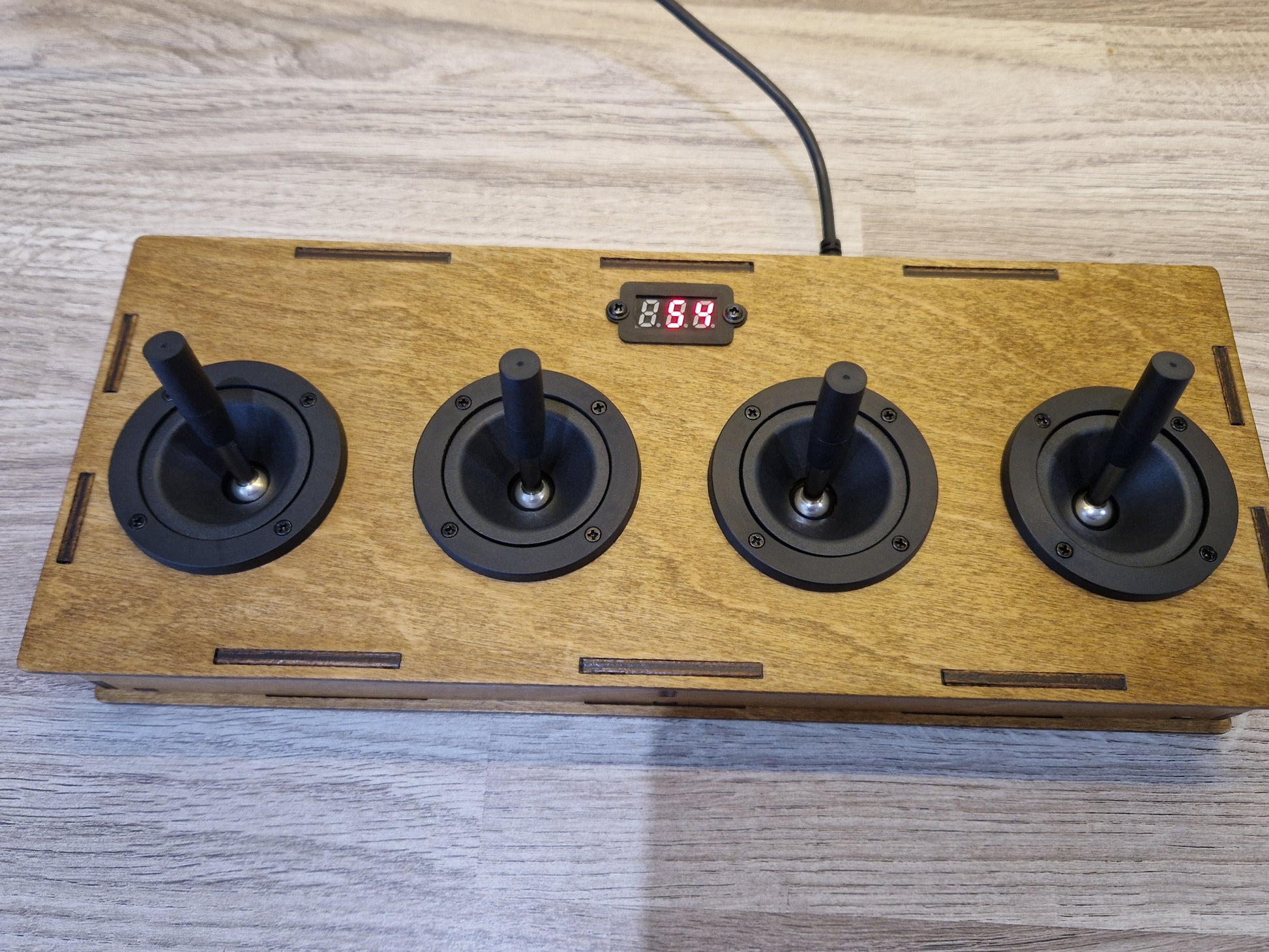

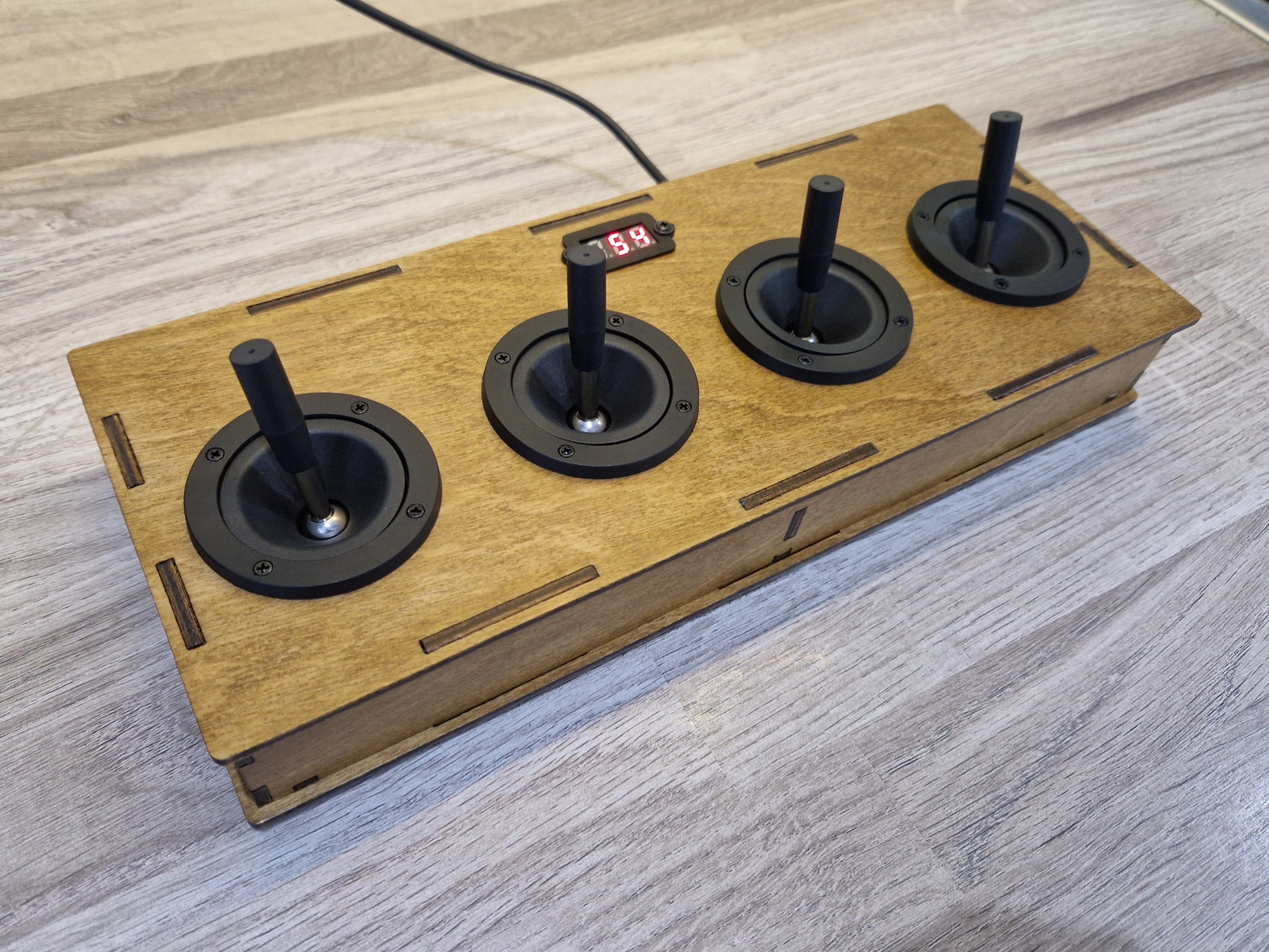

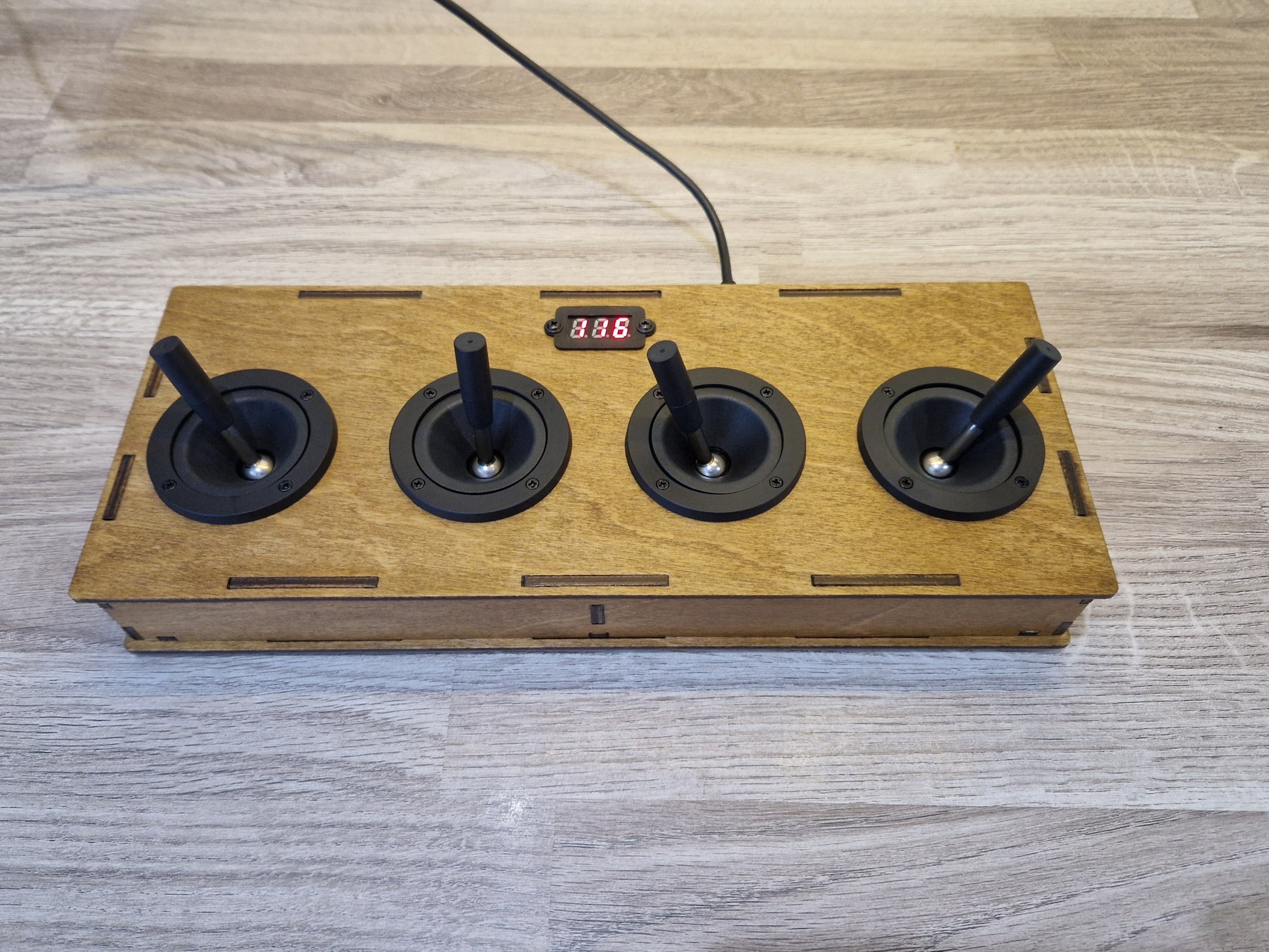

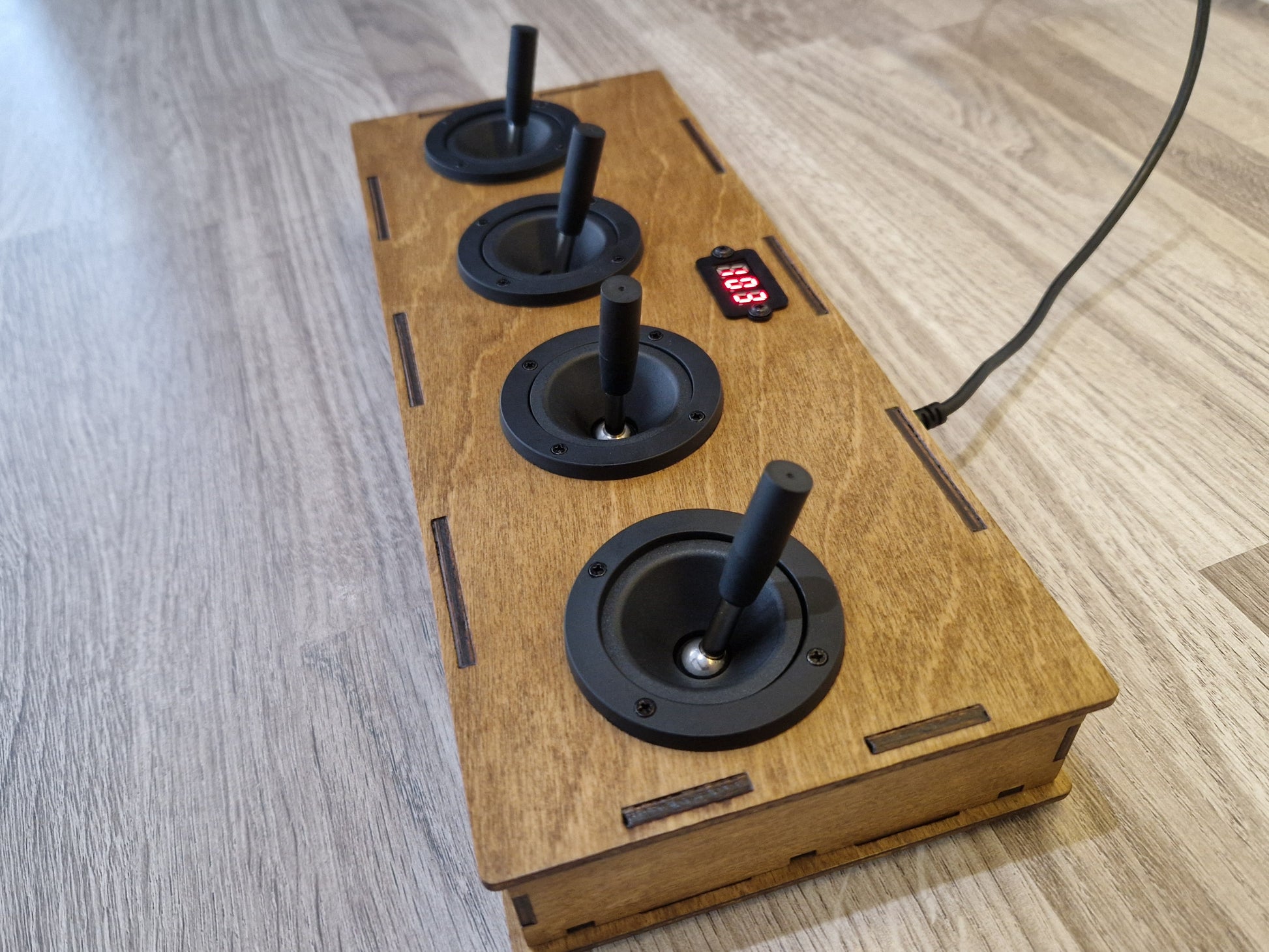

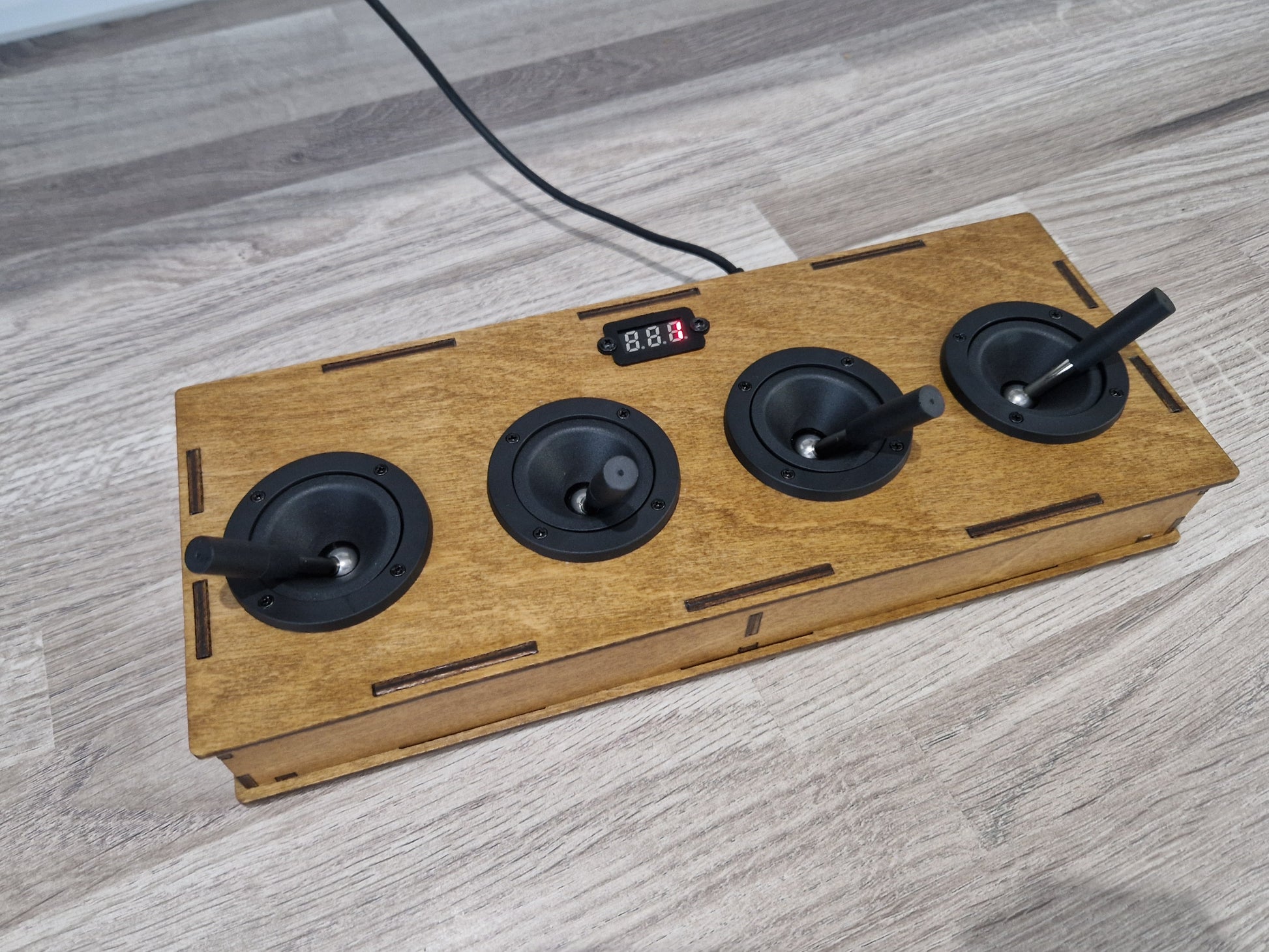

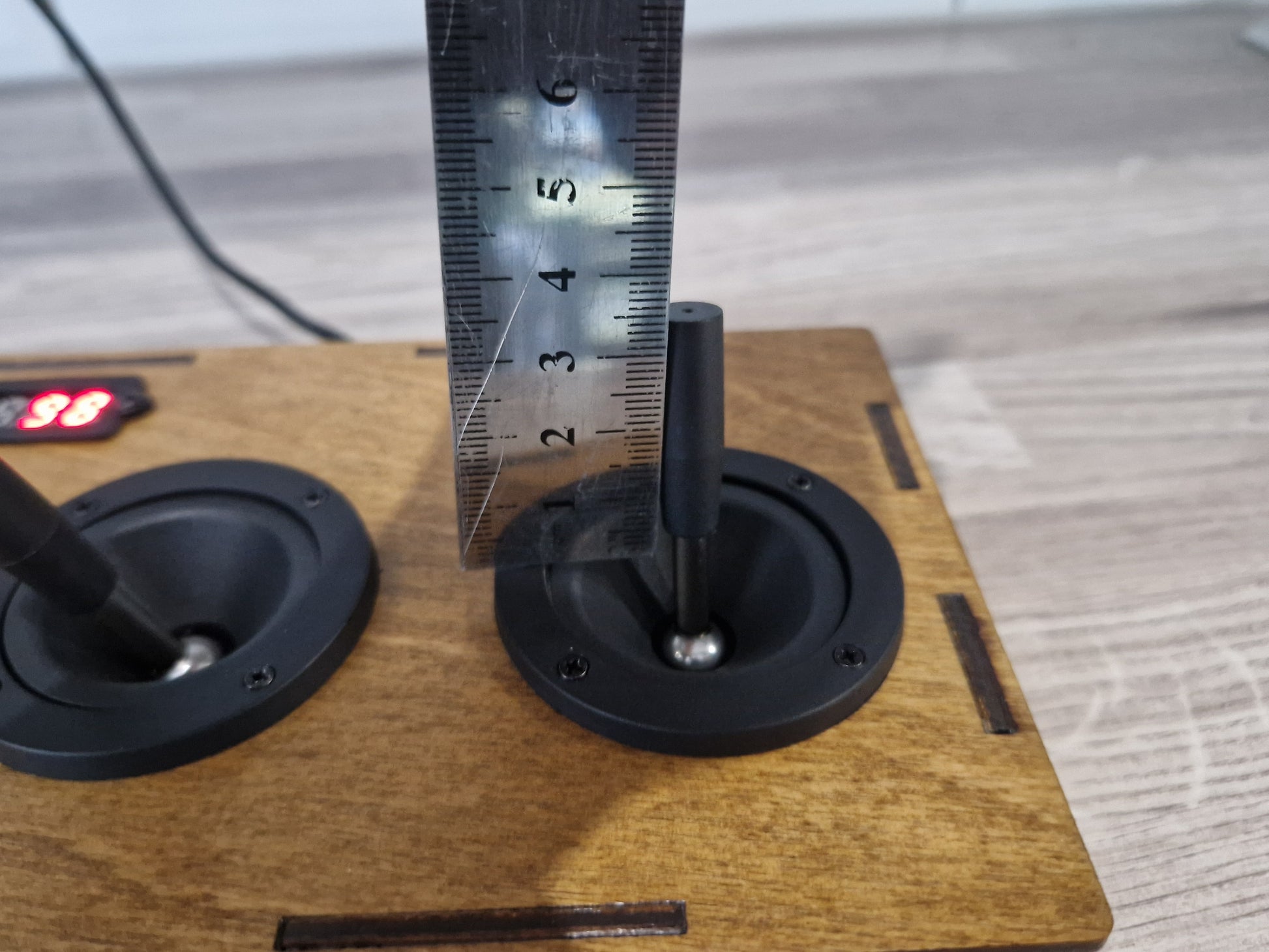

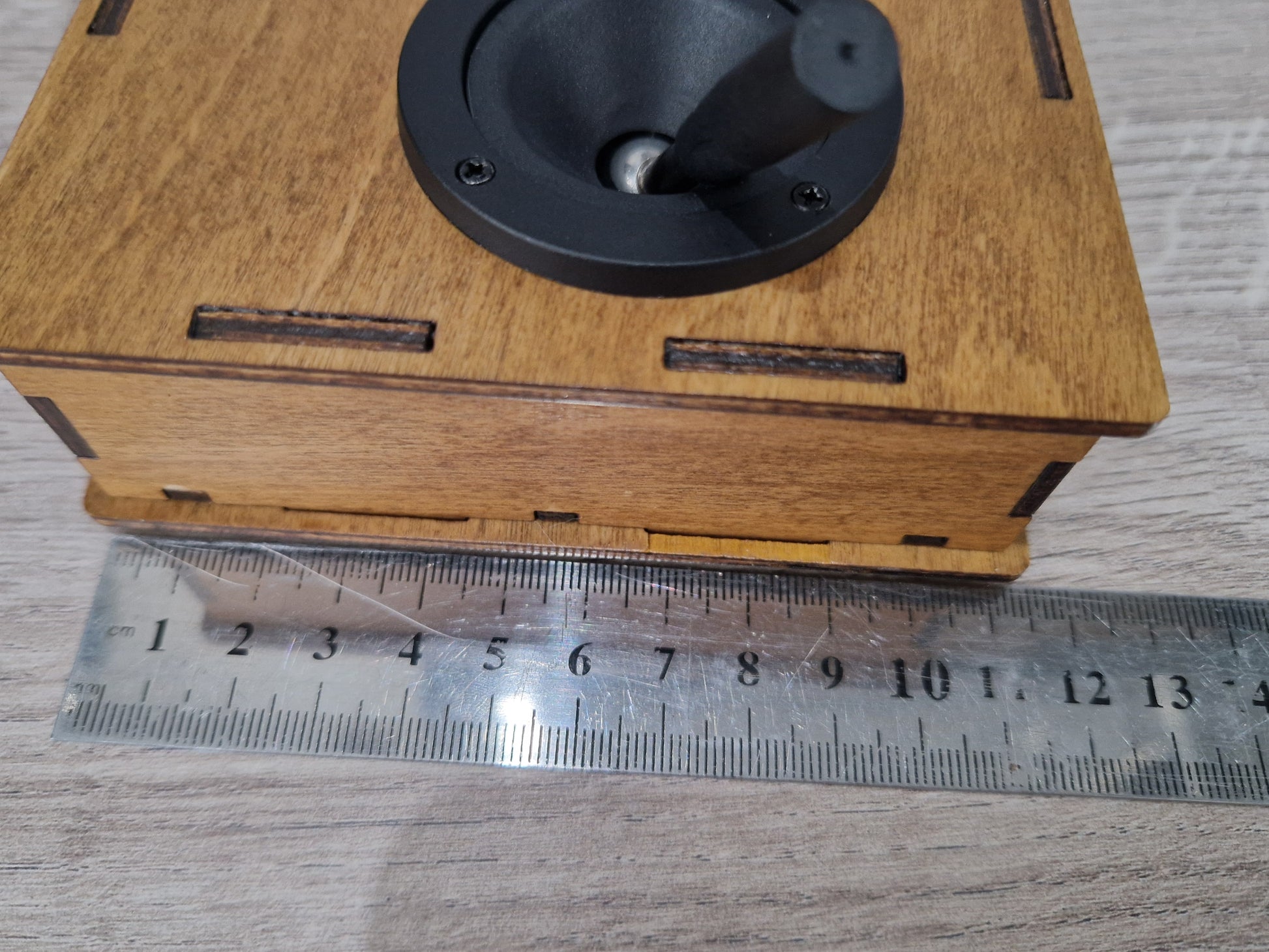

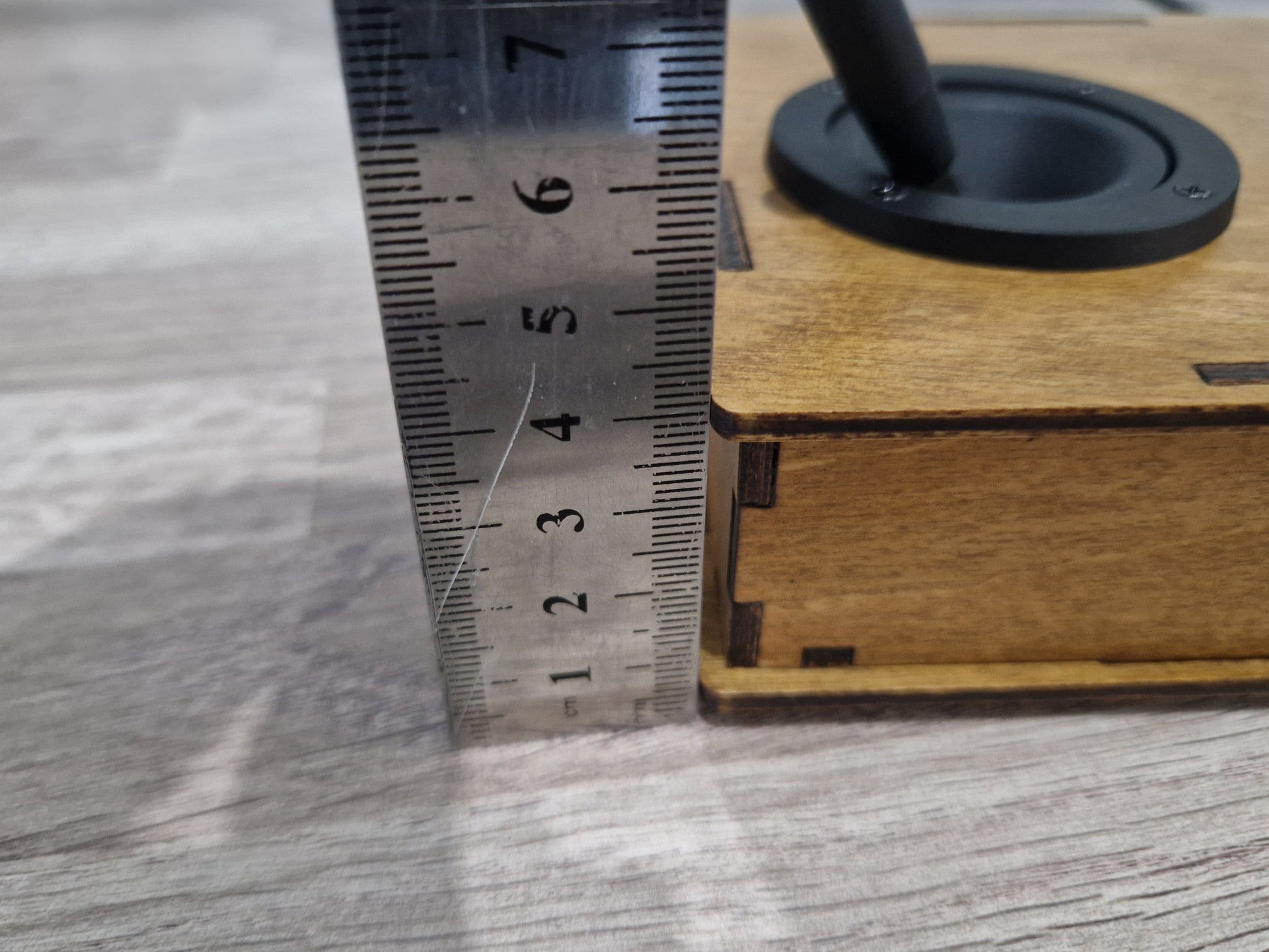

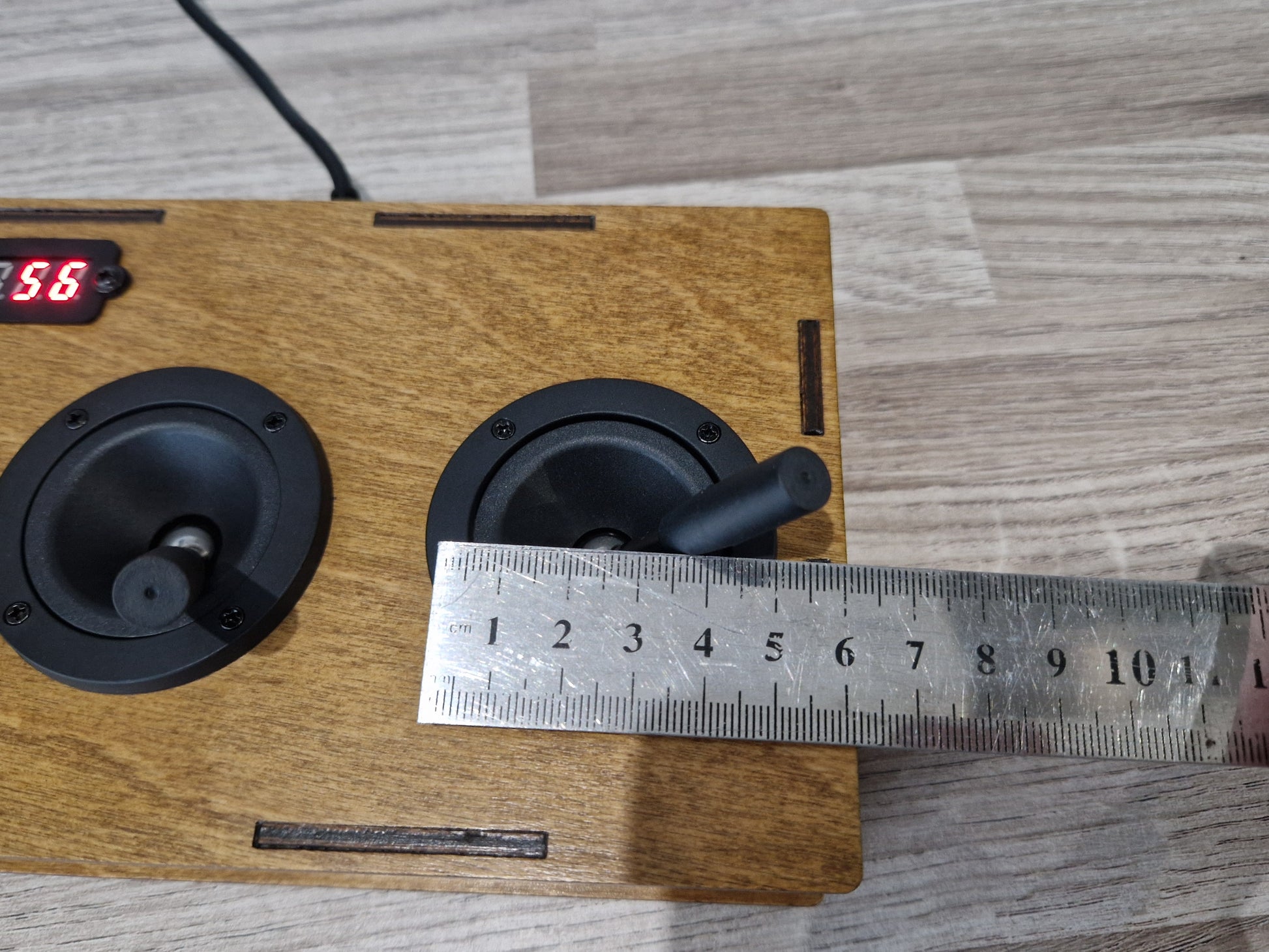

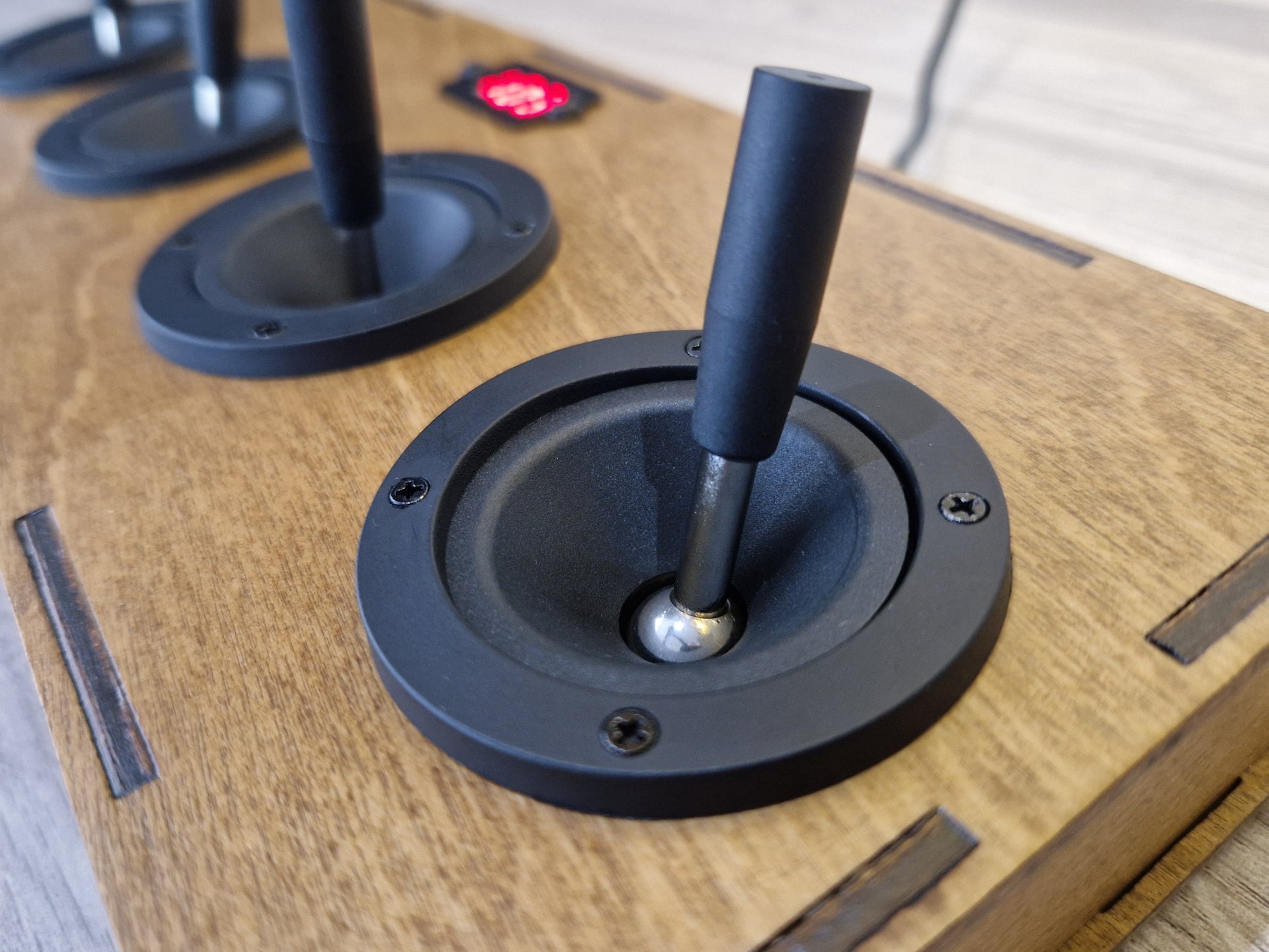

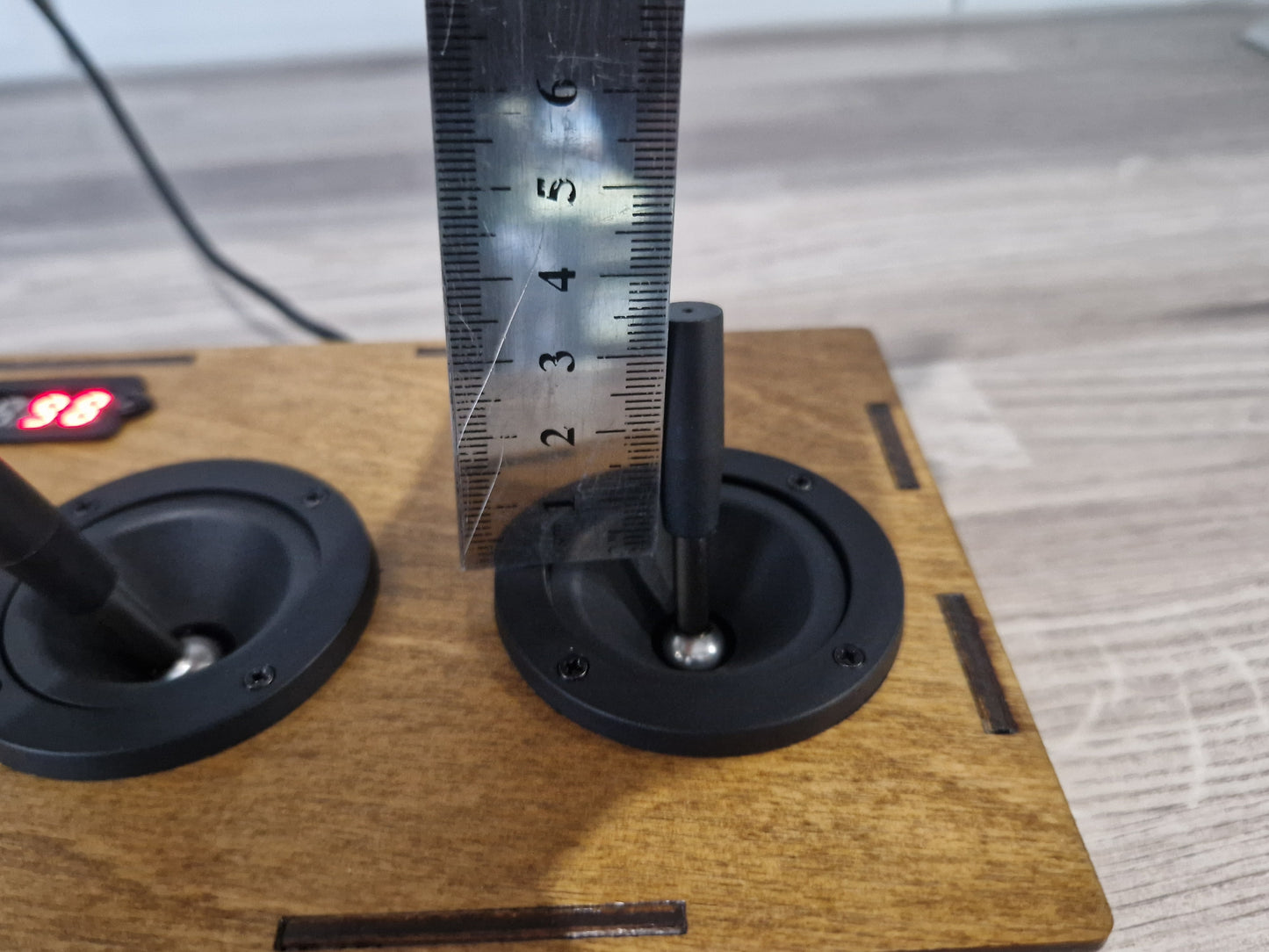

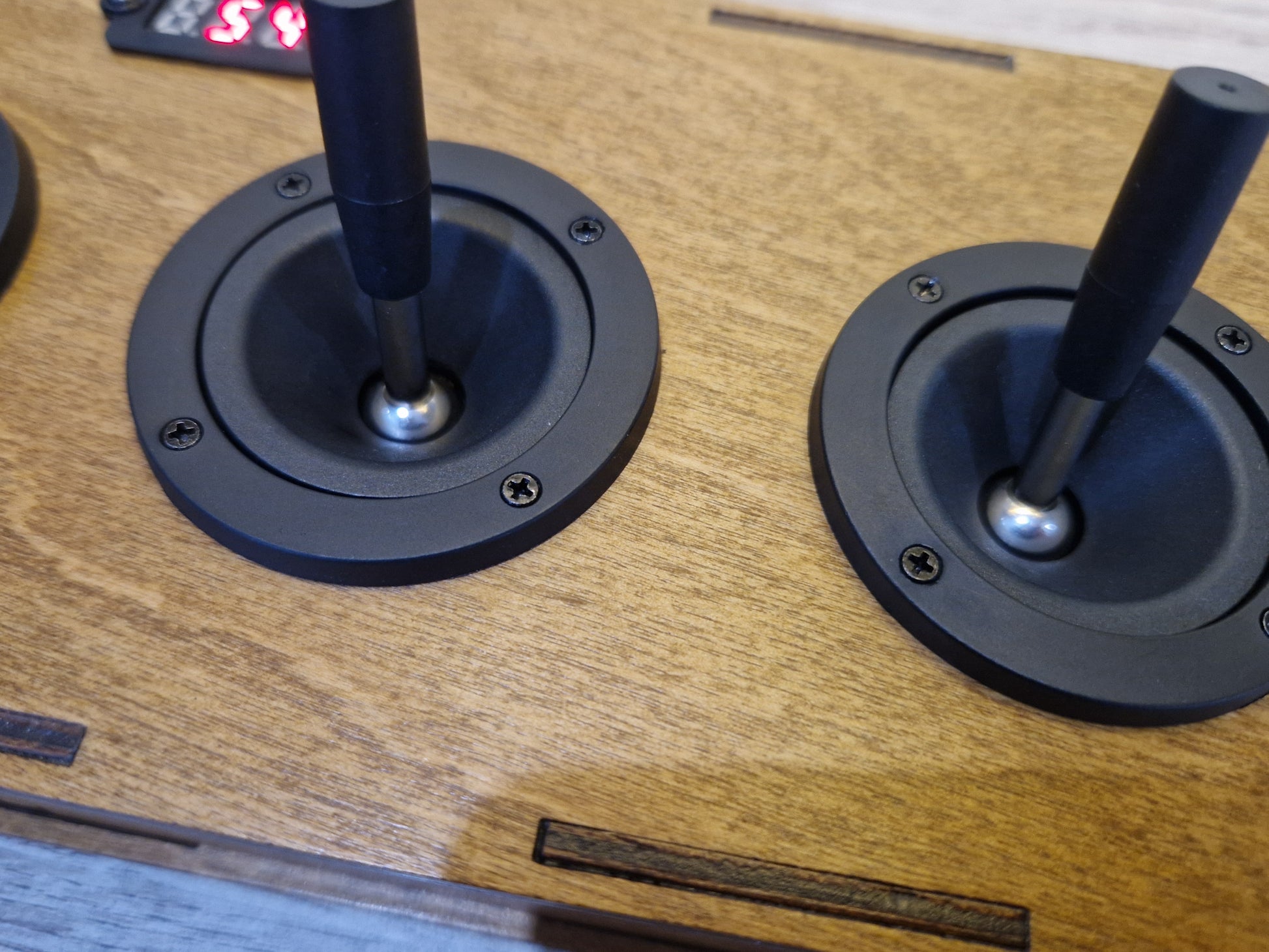

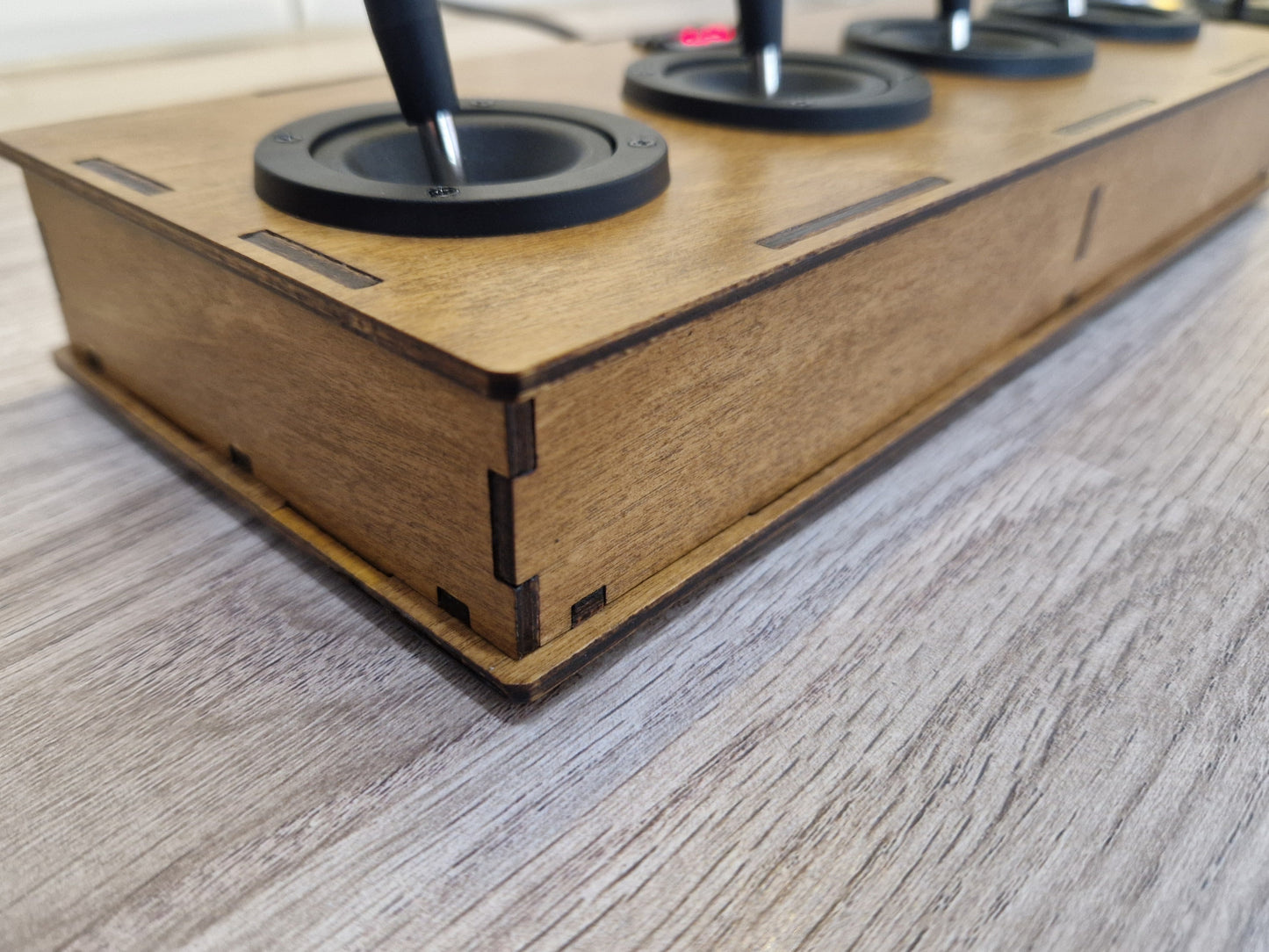

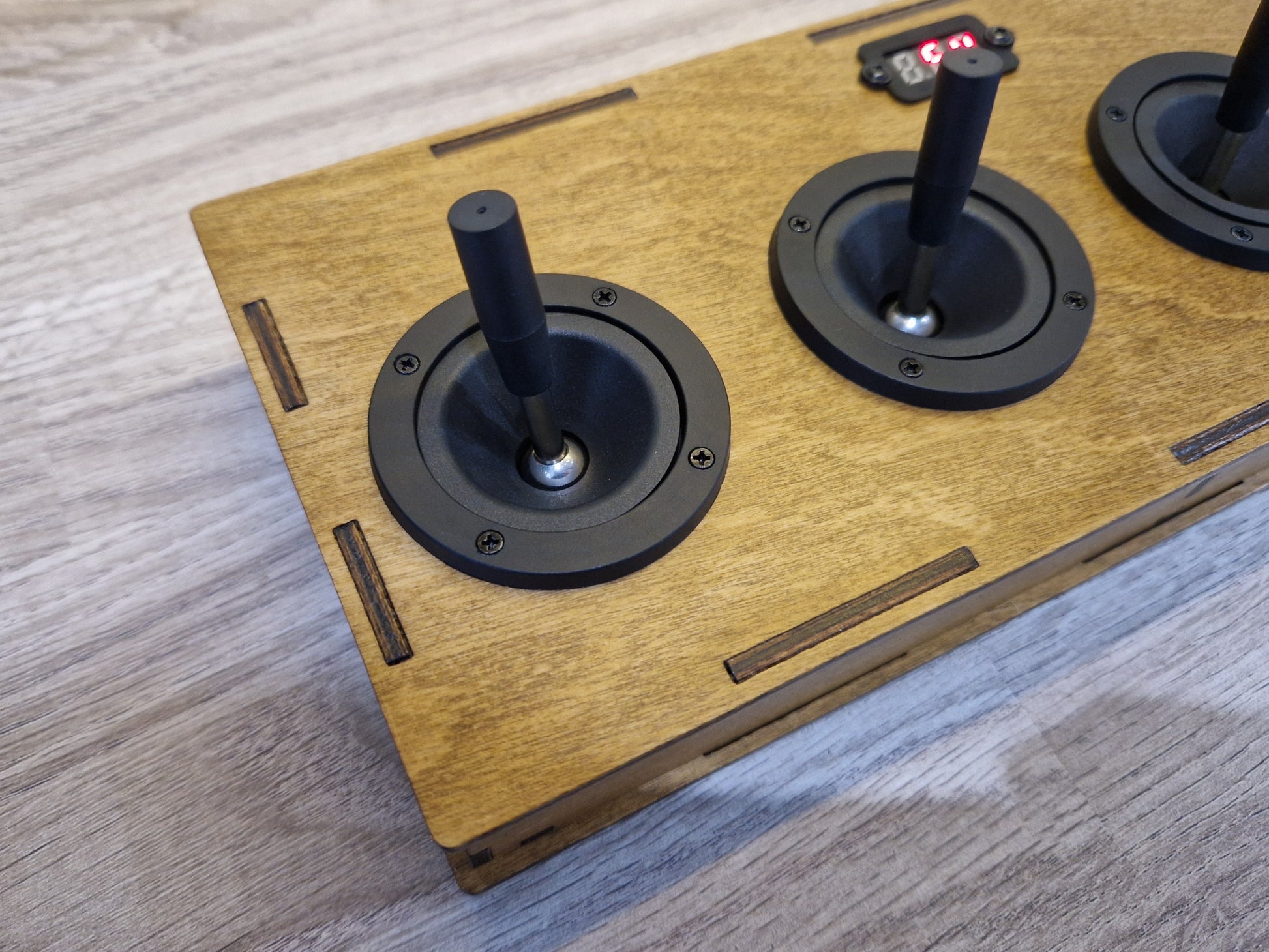

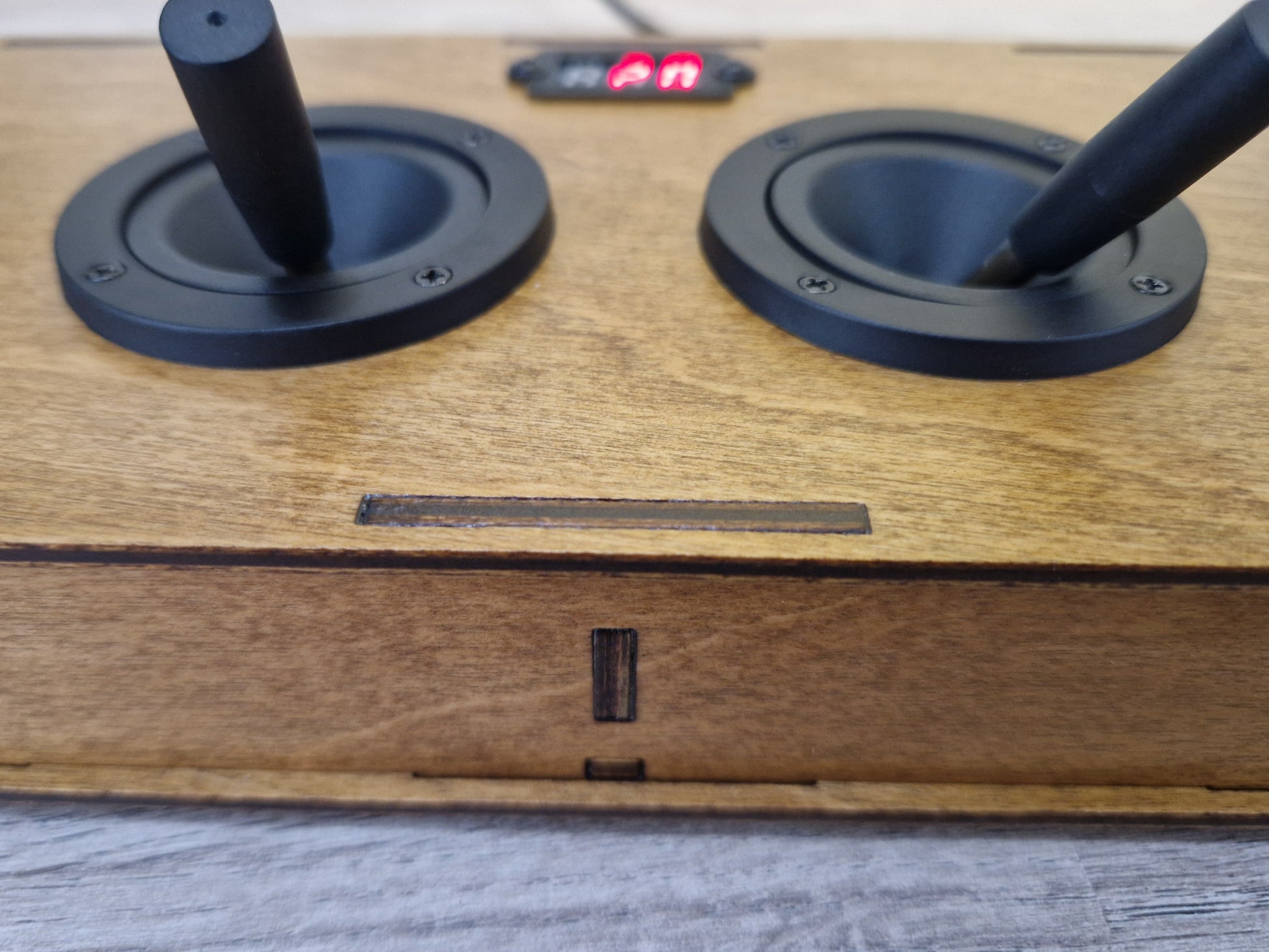

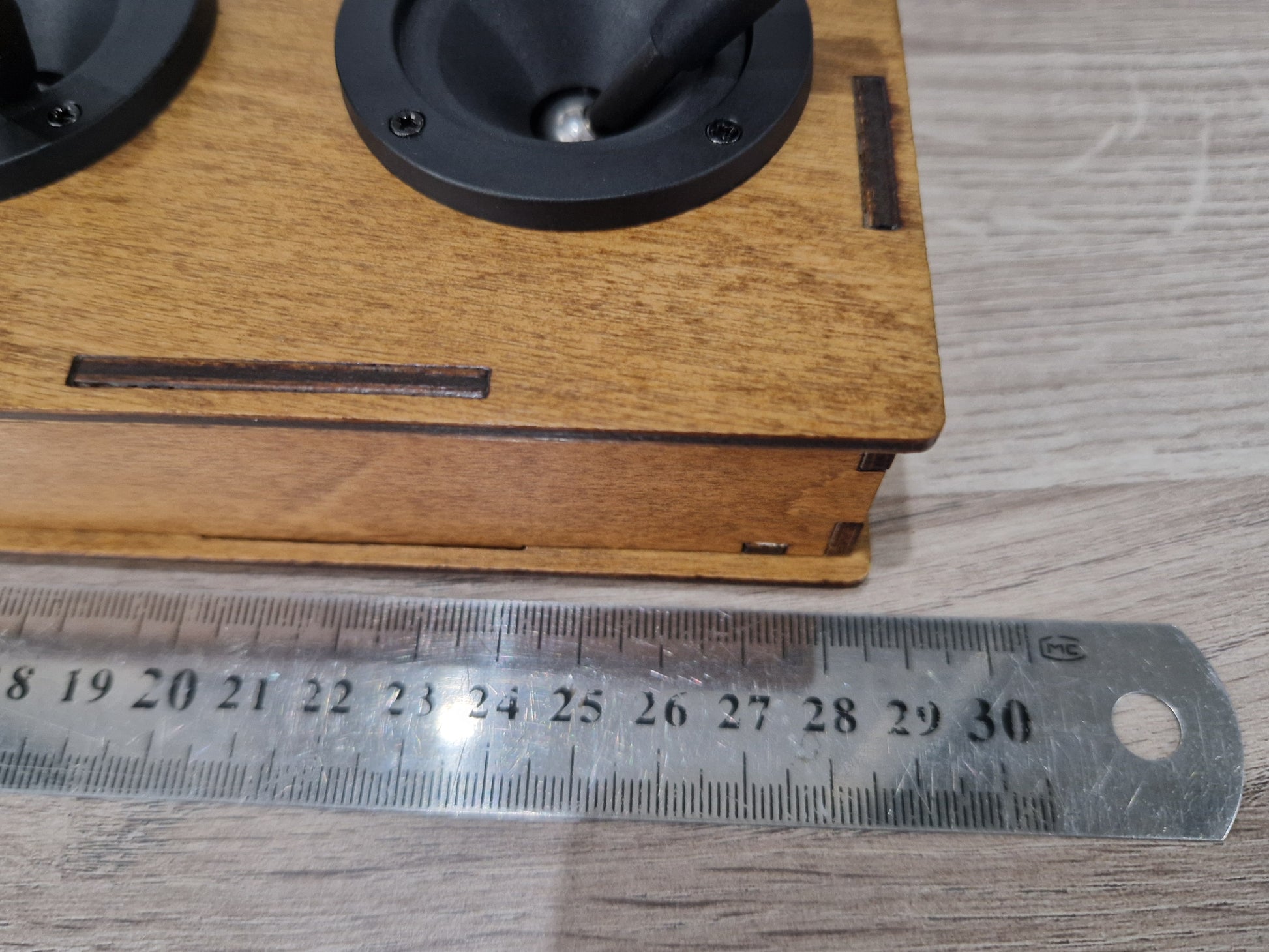

4 Joystick Controller

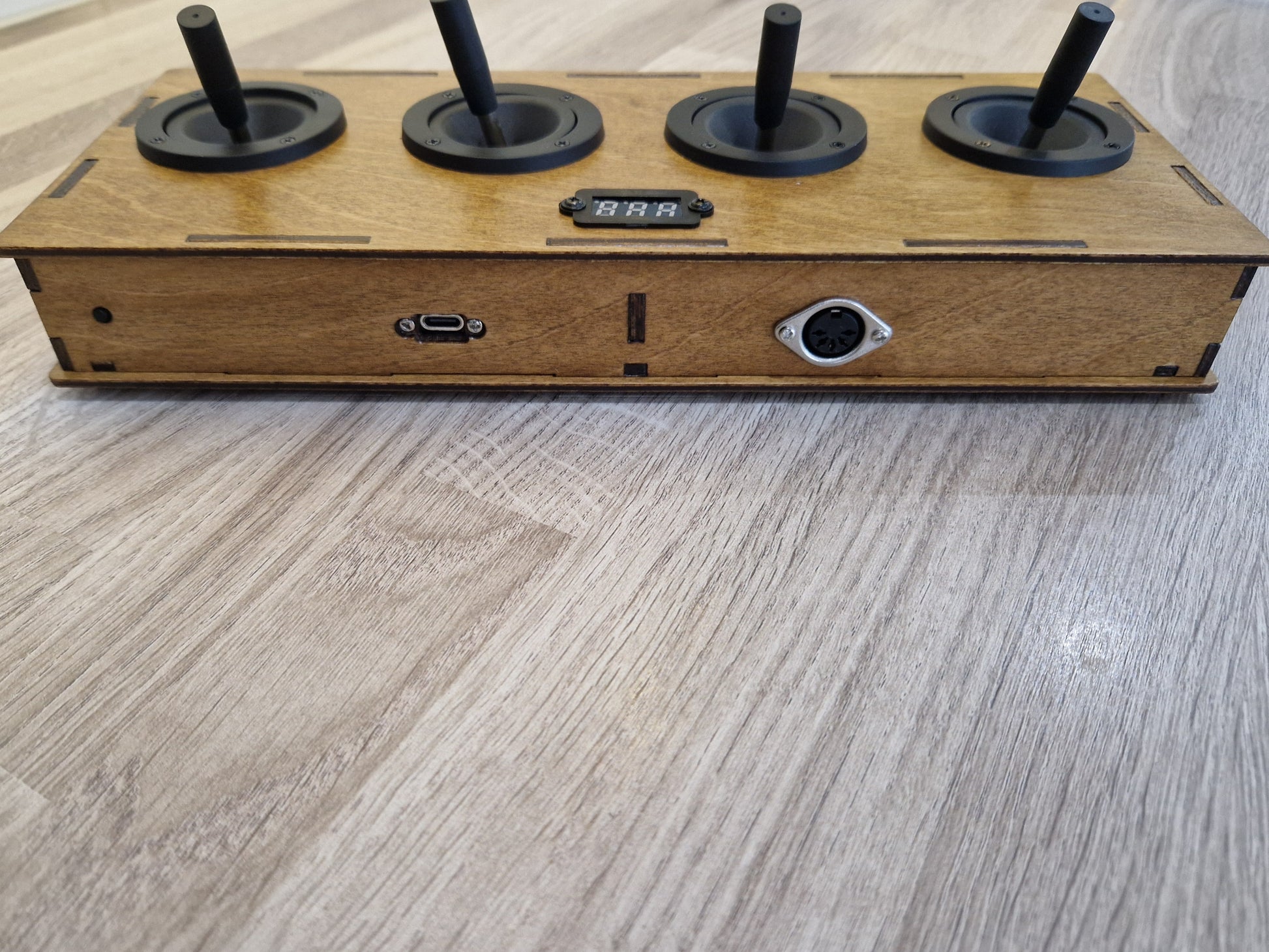

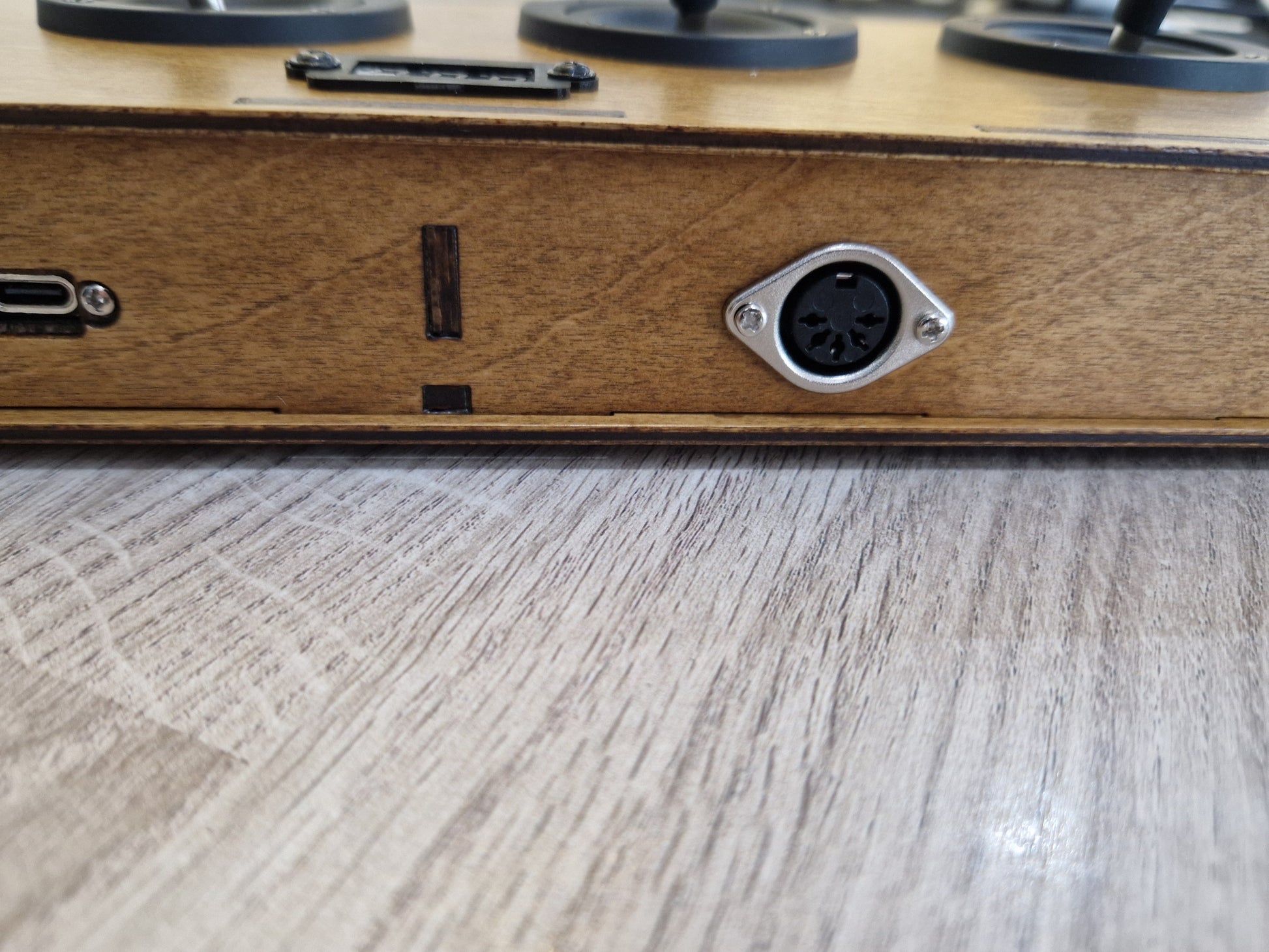

The USB cable is for USB MIDI but is also needed to power the controller when using the 5 Din socket
and need to be plugged into a USB port or a USB plug socket (phone charger plug)
when used with a DAW only set the controller as an input device and not as an output device
HOW TO SET THE CC NUMBER

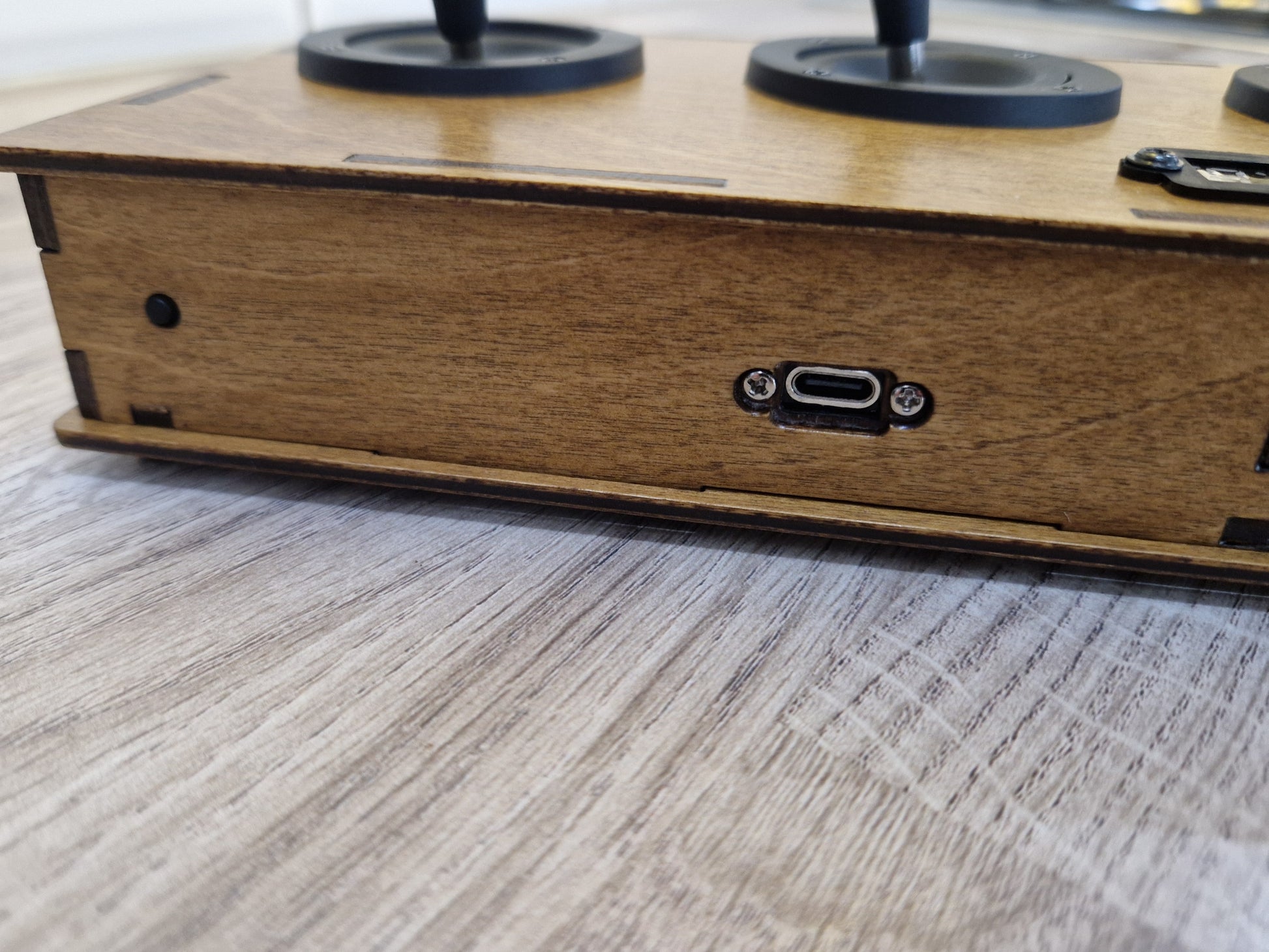

To set the CC# for a joystick axis press and hold the button located on the USB side of the box,
then move joystick axis to the number of the CC you want it to control. Let go of the button and the display will show 'CC-' then flash the new CC number.
Tip: If you find it difficult to stop on the exact number, for example you are trying to stop on 10 but it only changes between 9 and 11 go to 30+then back down and you should be able to stop on 10.

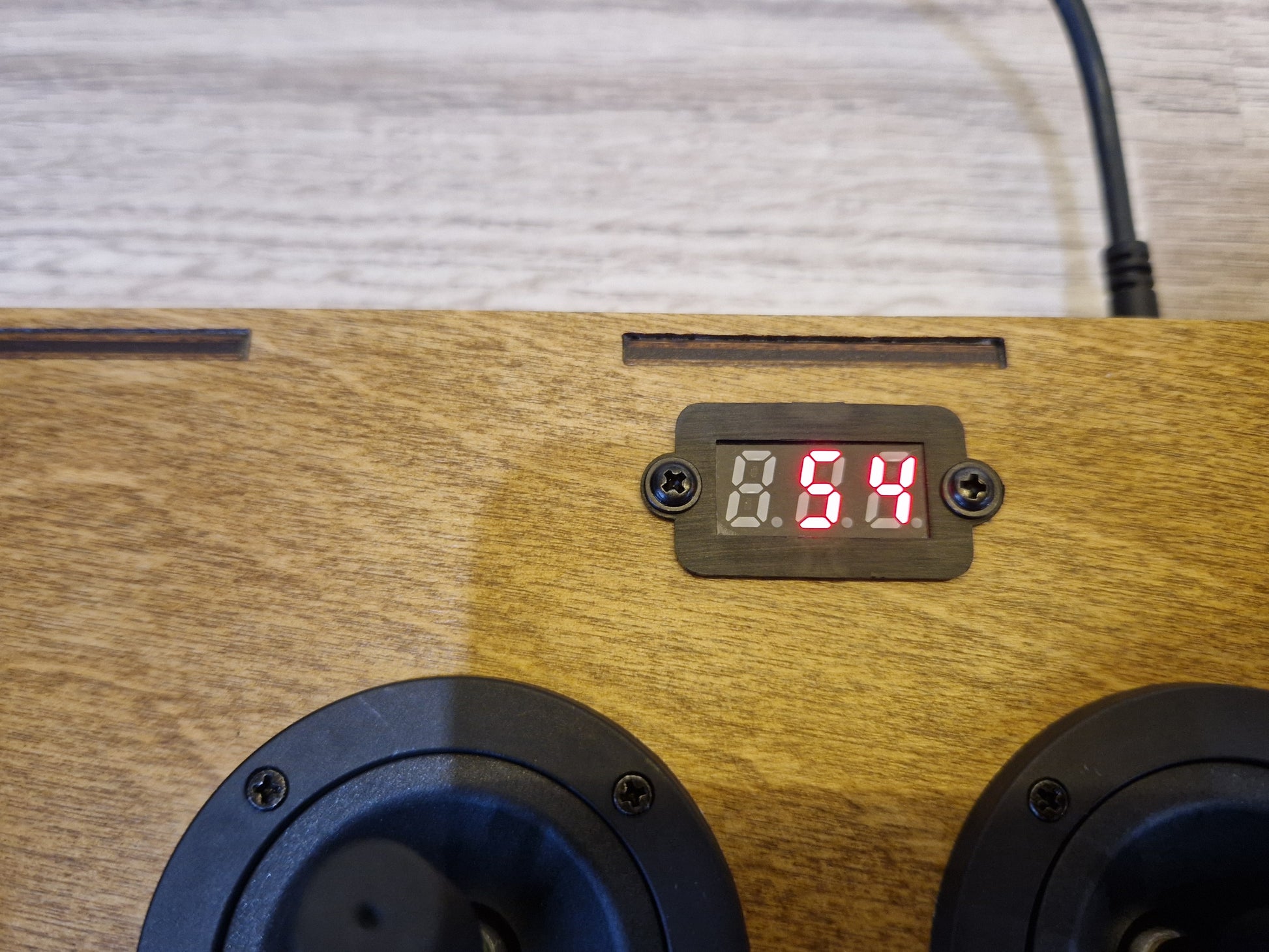

DISPLAY THE CC NUMBER A JOYSTICK AXIS IS SET TO AND THE PRESET NUMBER
Press the small button TWO times and keep the button held in on the 2nd press and the display will show “dSp” (display) Now move a joystick axis and the display will show the current set cc number
Then release the button to show the current preset number
CHANGING THE CONTROLLER CHANNEL NUMBER (1-16)
The channel is changed the same way the cc# is changed but you press the small button THREE times and keeping the button held in on the 3rd press and the display will show “CHA” (channel all) now move any joystick axis to the number of the channel you want the controller to be set to
Then let go of the small button and the display will show “c” and the new channel number
CHANGING THE PRESET (1-5)
Press the small button FOUR times and keep the button held in on the 4th press and the display will show “PrE” (preset) Now move the joystick axis to the preset number you want it set to
Then let go of the small button and the display will show “PrE” then the preset number
CHANGE THE LOW RANGE OF A JOYSTICK AXIS (0-126)
Press the small button FIVE times and keep the button held in on the 5th press and the display will show “LO” (low)
Now move the joystick axis you want to change the low range of and move it to the number you want it set to
Then let go of the small button and the display will show “LO” and flash the low range of that joystick axis
CHANGE THE HIGH RANGE OF A JOYSTICK AXIS (1-127)
Press the small button SIX times and keep the button held in on the 6th press and the display will show “HI” (high)
Now move the joystick axis you want to change the high range of and move it to the number you want it set to
Then let go of the small button and the display will show “HI” and flash the high range of that joystick axis
CHANGE ONE JOYSTICK AXIS CHANNEL ( 1-16)
changing just one joystick axis channel is done the same way as all the channels but you press the small button seven times and keep the button held in on the 7th time and the display will show “CHI” (channel Independent) now move the joystick axis to the number of the channel you want the joystick axis to be set to
Then let go of the small button and the display will show “c” and the new channel
